Key Features
- Coaxial Loudspeaker
- 12" Low Frequency Reproducer
- 1" High Frequency Reproducer
- Pre-Mounted 60-Watt 70V/100V Transformer
- High Power Handling
- Smooth Frequency Response
Description

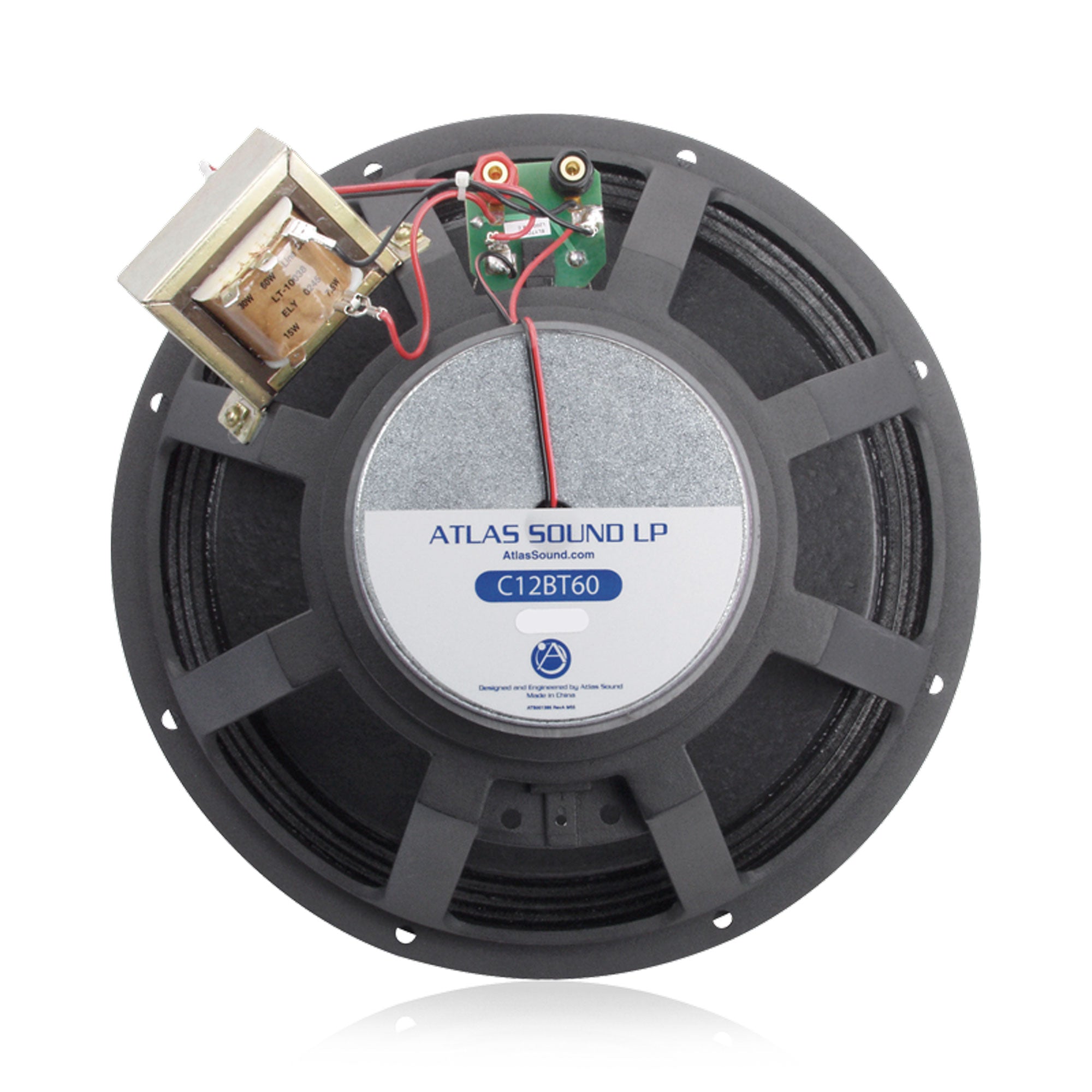

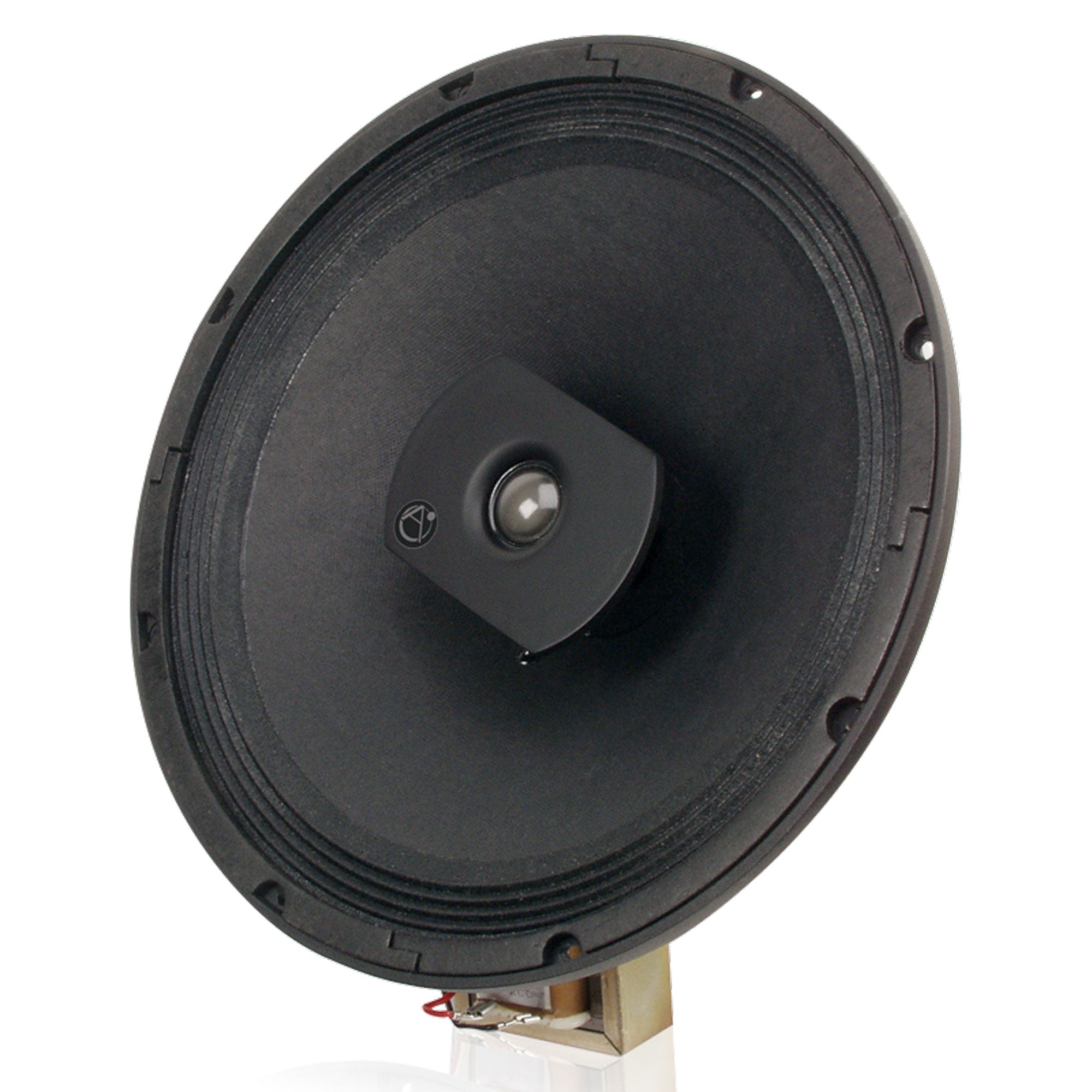

12" 2-Way Dome Tweeter Style Coaxial Speaker with 60 Watt 70.7/100V Transformer
AtlasIED Model C12BT60 is a professional quality coaxial speaker for use where full range music and voice reproduction are desired. Model C12BT60 combines a 12" diameter low frequency reproducer and a 1" diameter high frequency, post-mounted reproducer. The unit features a curvelinear, treated paper cone for lower harmonic distortion and a built-in crossover network for determining proper frequency selection between the two reproducers.
The competitively priced unit assures smooth frequency response in a high power handling mode. For best results, enclosures with a volume of 2 cu. ft. or greater (including AtlasIED Models Q4412 or Q4612) are recommended. A factory installed 60 watt line transformer is included with the package, however, the transformer can be easily bypassed for 8 ohm applications.
Features:
- Coaxial Loudspeaker with 12" Diameter Low Frequency and 1" Diameter High Frequency Reproducer
- Includes Factory-Installed Line-Matching Transformer
- Mounts a Wide Selection of Atlas Sound Q Series Enclosures and Standard Baffles
- Professional Quality Sound Reproduction at a Competitive Price
Specifications:
- Frequency Response: 33Hz - 21kHz
- Sensitivity: 95dB (at 1W/1m)
- Power Taps: 7.5, 15, 30, 60
- Speaker Type: Full Range Coaxial
- Dispersion: 90°
- Depth: 4 3/16" (10.63625 cm)
- Shipping Weight: 5.00 lbs (2.27 kgs)
