Key Features
- Dual Channel Format
- Balanced XLR Inputs
- Unbalanced RCA Outputs
- Passive Unit, Needs No Power
- Heavy Duty Steel Chassis
Description

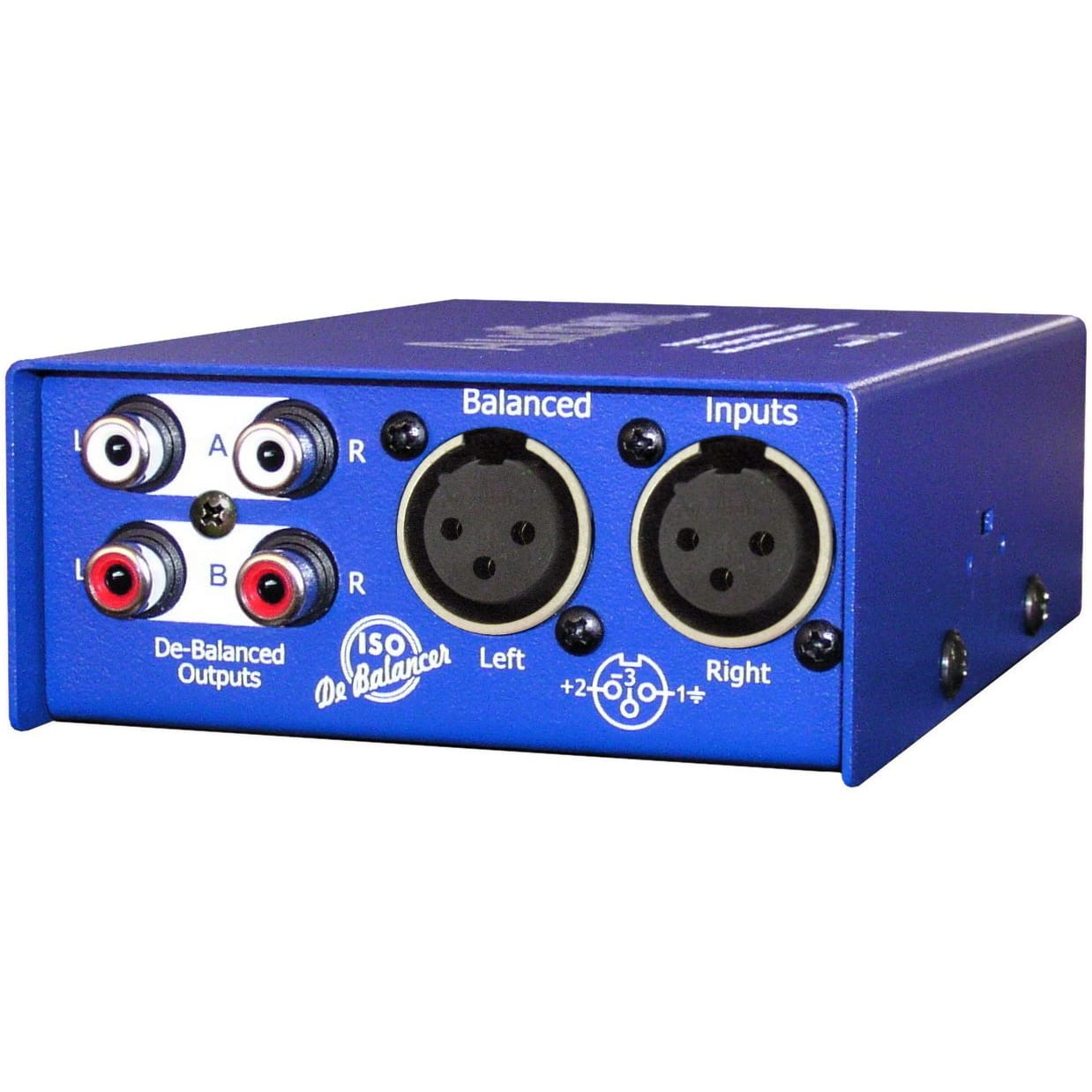

AudiBox Series Dual Channel Transformer Balanced to Unbalanced Converter, 2 x XLR-M Inputs to 2 x RCA Outputs
A Unique de-balancing unit, the De-Balancer will convert stereo XLR Balanced Low Impedance signals to Unbalanced RCA Low Impedance signals, to allow leads to run balanced from point A to point B and then be de-balanced for connecting to a high impedance/unbalanced input at the B end. This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application. Mounted in a heavy duty all steel chassis, and available in Dual Channel format only. Needs no power.
A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the B end
This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application
The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington-type computer lock slot and optional bracket kit for under-table mounting.
Available in Dual Channel format only
Specifications:
- Input Impedance: 10K Ohms Balanced
- Output Impedance: 10K Ohms Unbalanced
- Input Level (max): +12dB
- Frequency Response: 20Hz - 20 KHz ± 0.5dB
- THD at Max Output: 0.2% 30 Hz - 20KHz
- Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source)
- Input Connector: 3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Chassis Ground connected to XLR Pin 1
- Output Connectors: Dual stereo RCA connectors
- Construction: All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer
