Key Features
- Switchable Input Attenuation
- 50k Ohm Instrument Input
- 600 Ohm XLR Output Jack
- Switchable Ground Lift
- Electric Guitar & Bass Signals
- Keyboards & Line Level Signals
- DJ Console Output Signals
Description

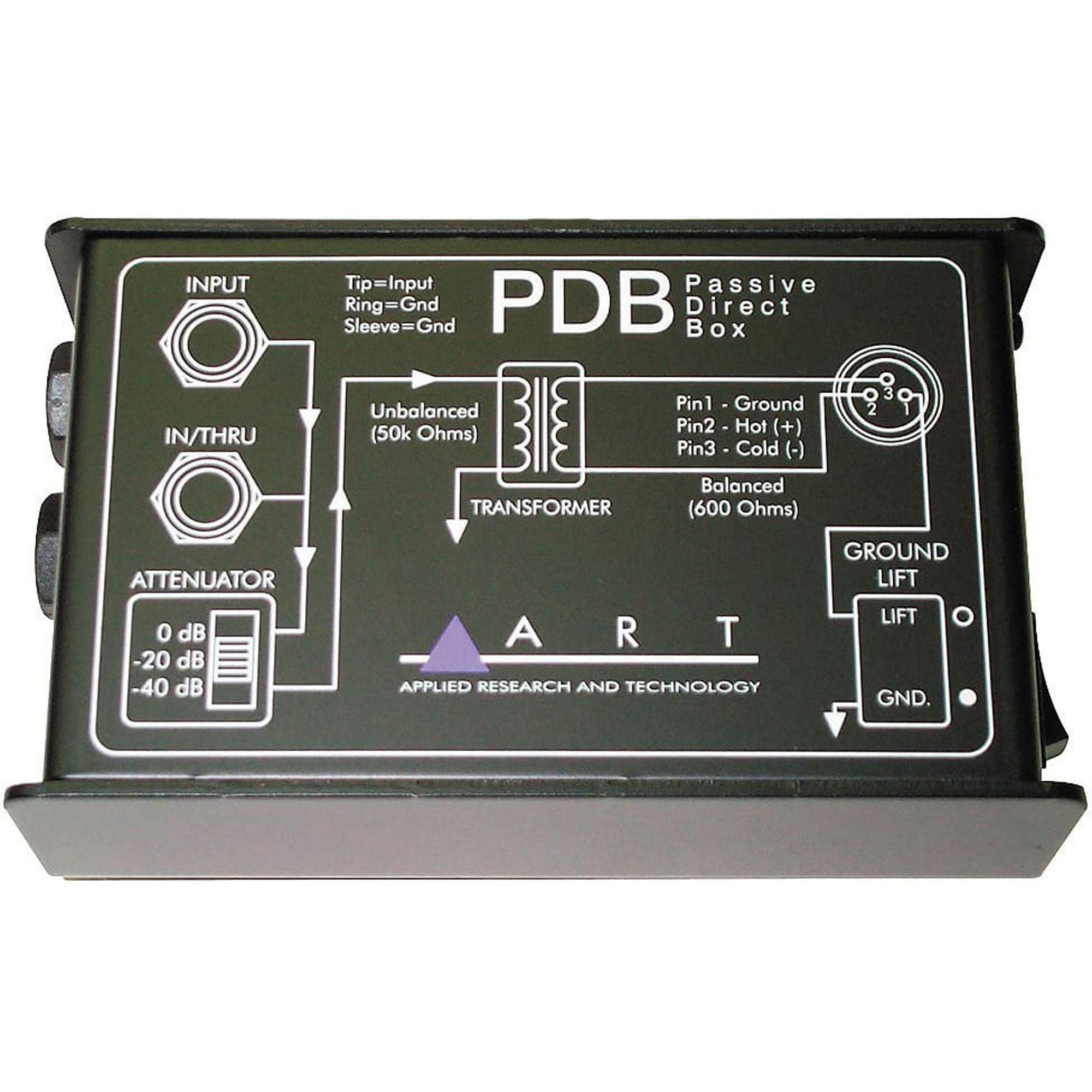

Single Channel Passive Direct Injection Box
The PDB Passive Direct Box is a rock solid, roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs.
The PDB also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.
Specifications:
- Ground Lift: Switchable
- Input Attenuation: Switchable (0dB, -20dB, -40dB)
- Instrument Input: 50k Ohm
- Output Jack: 600 Ohm XLR Output Jack
- Parallel Link Jack: 50k Ohm
- Frequency response: 10Hz - 50KHz +/- 0.5dB @ +4dBu
- Dimensions: 3" x 5" x 2"
Details
- Manufacturer: ART
- MPN: PDB
- Model Number: PDB
- UPC: 840402011392
