Antelope Audio Isochrone OCX HD Master Clock

768 kHz HD Master Clock

The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound

For over a decade, Antelope's legendary OCX Master Clock has been a dominant force in the audio world.

This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD.

Features:

• Antelope's 4th-generation AFC jitter management algorithm
• Sample rate support up to 768kHz
• Output of 5 distinct sample rates enabled by onboard multipliers and dividers
• Additional connectivity via 4 AES/EBU, 2 S/PDIF clocking outputs (up to 192kHz)
• Comprehensive audio gearboxing
• Universal video input (BNC connector)
• Atomic clock input for optimized accuracy and calibration
• 3 recallable presets

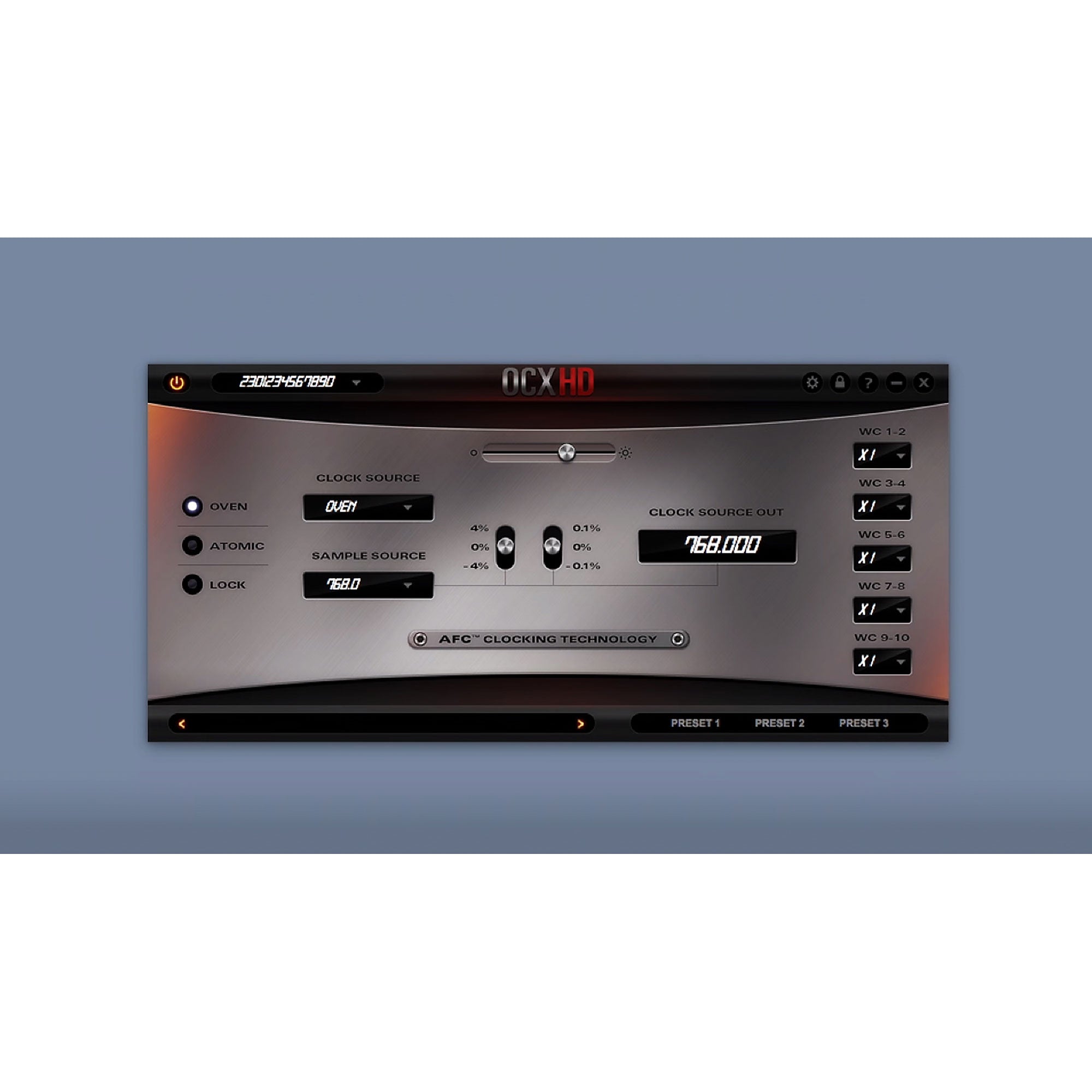

• Control panel Rate Lock protects your settings while in session

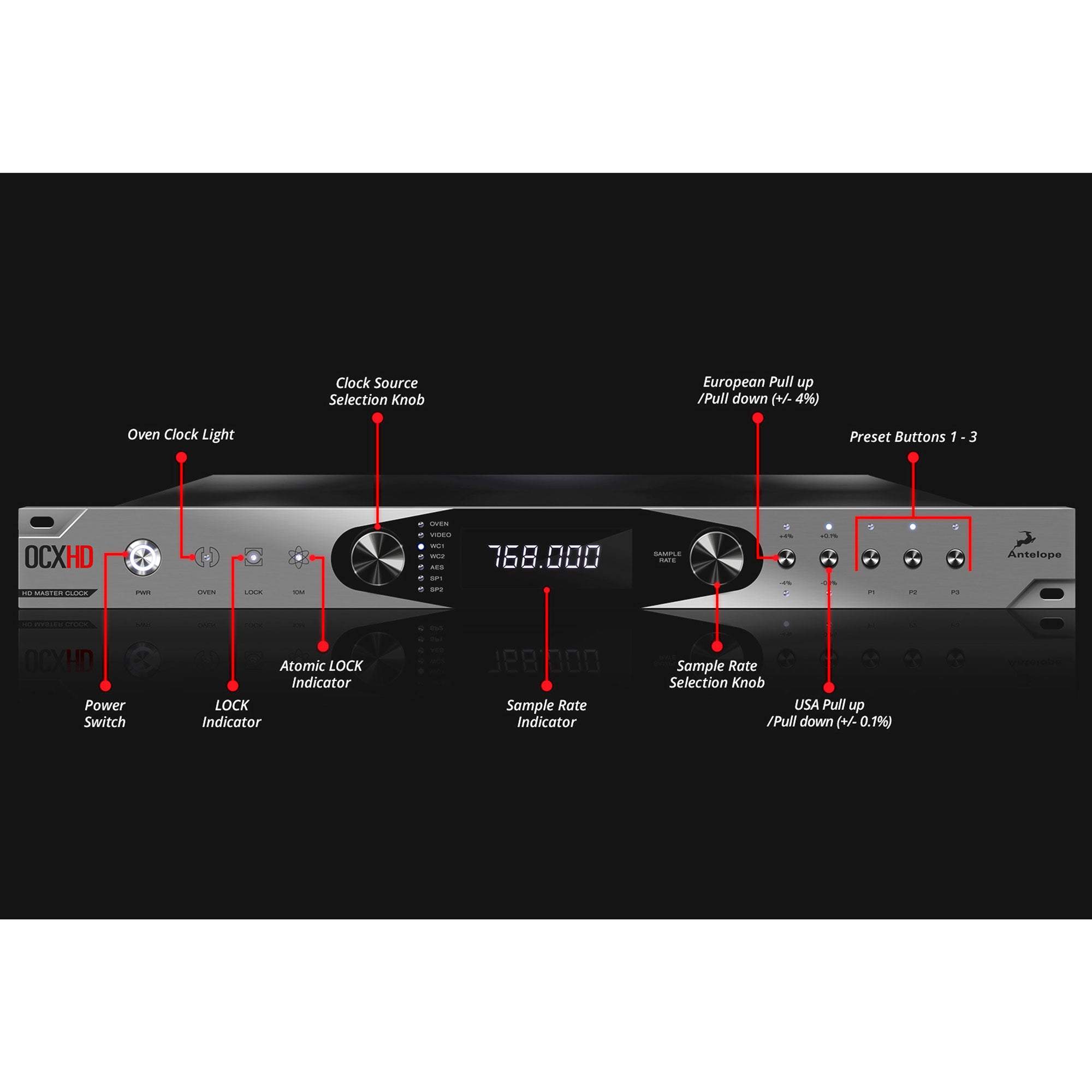

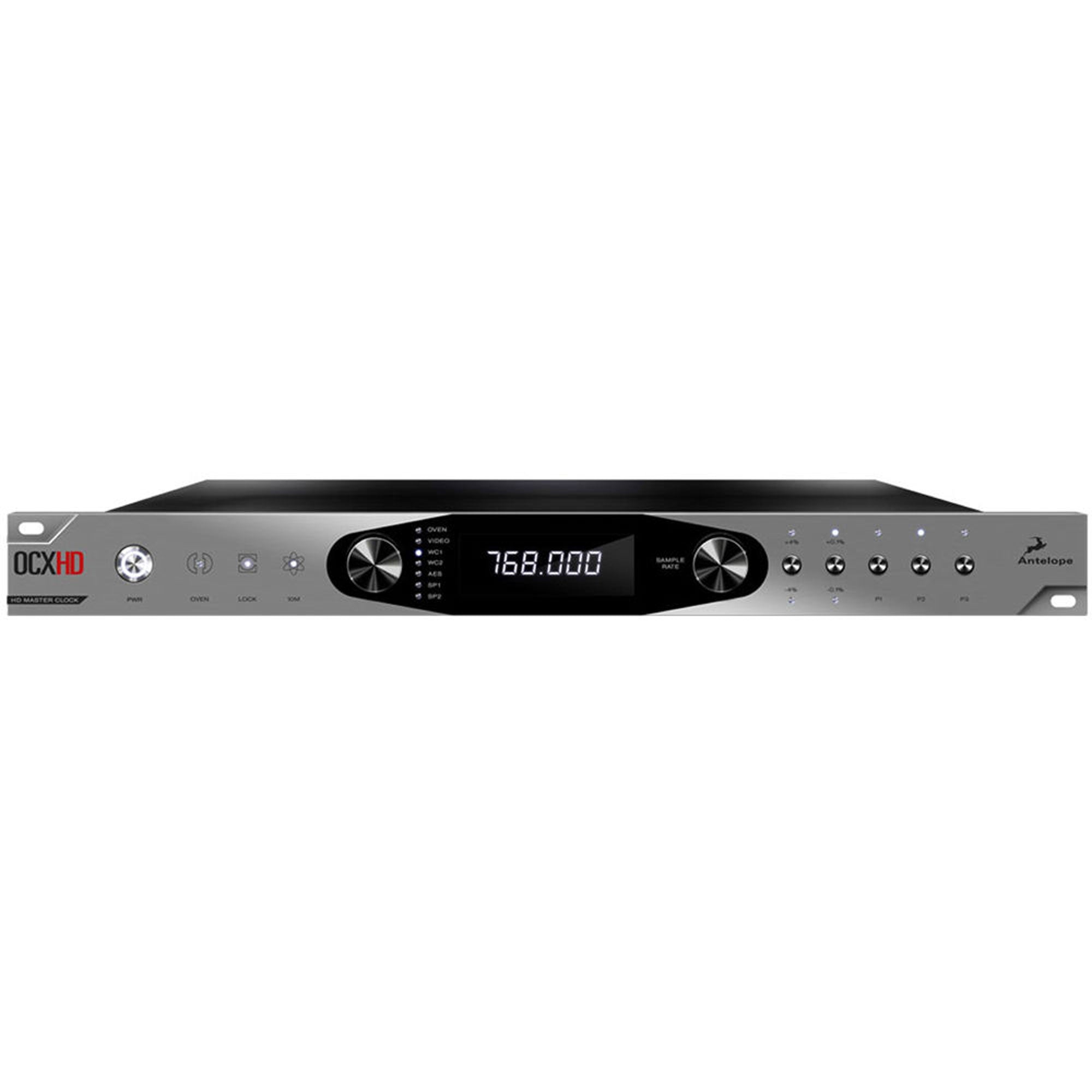

• User-friendly front panel control

THE NEW STANDARD IN CLOCKING

OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope's best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

OCX HD Master Clock offers a great variety of clocking options - 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.

VIDEO CLOCKING

All that you love about Antelope's cult Trinity Master Clock now in just 1U.

Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope's newest Atomic Clock - 10MX.

Specifications

• Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

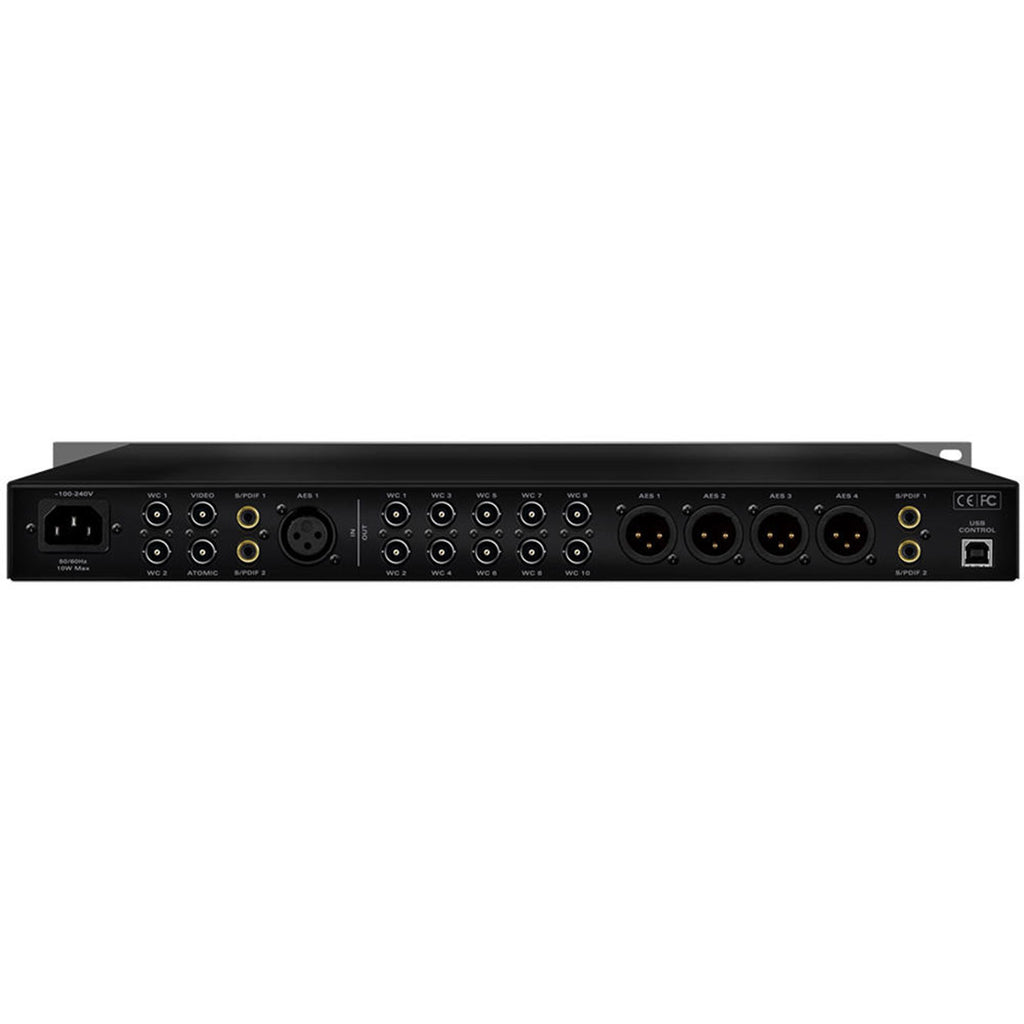

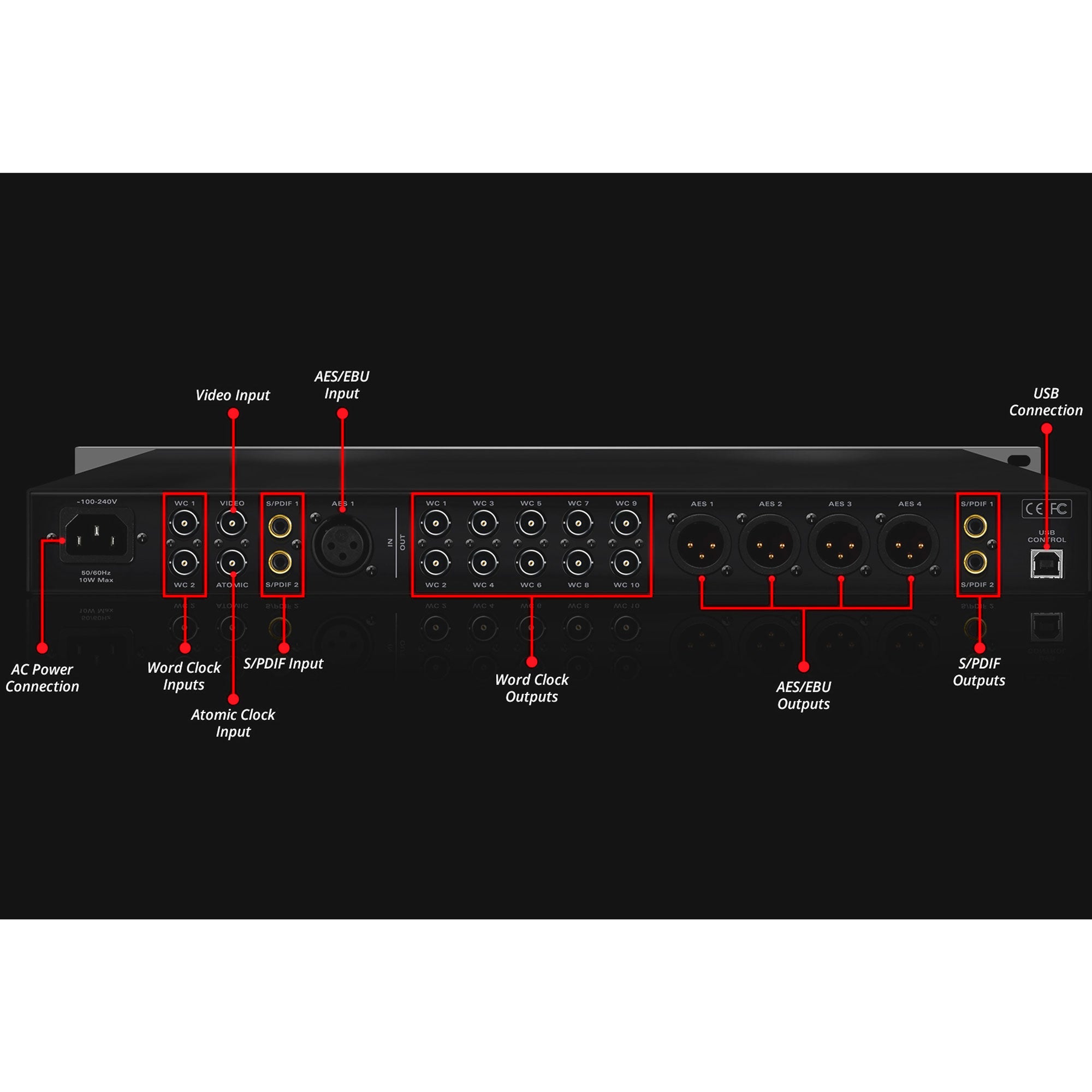

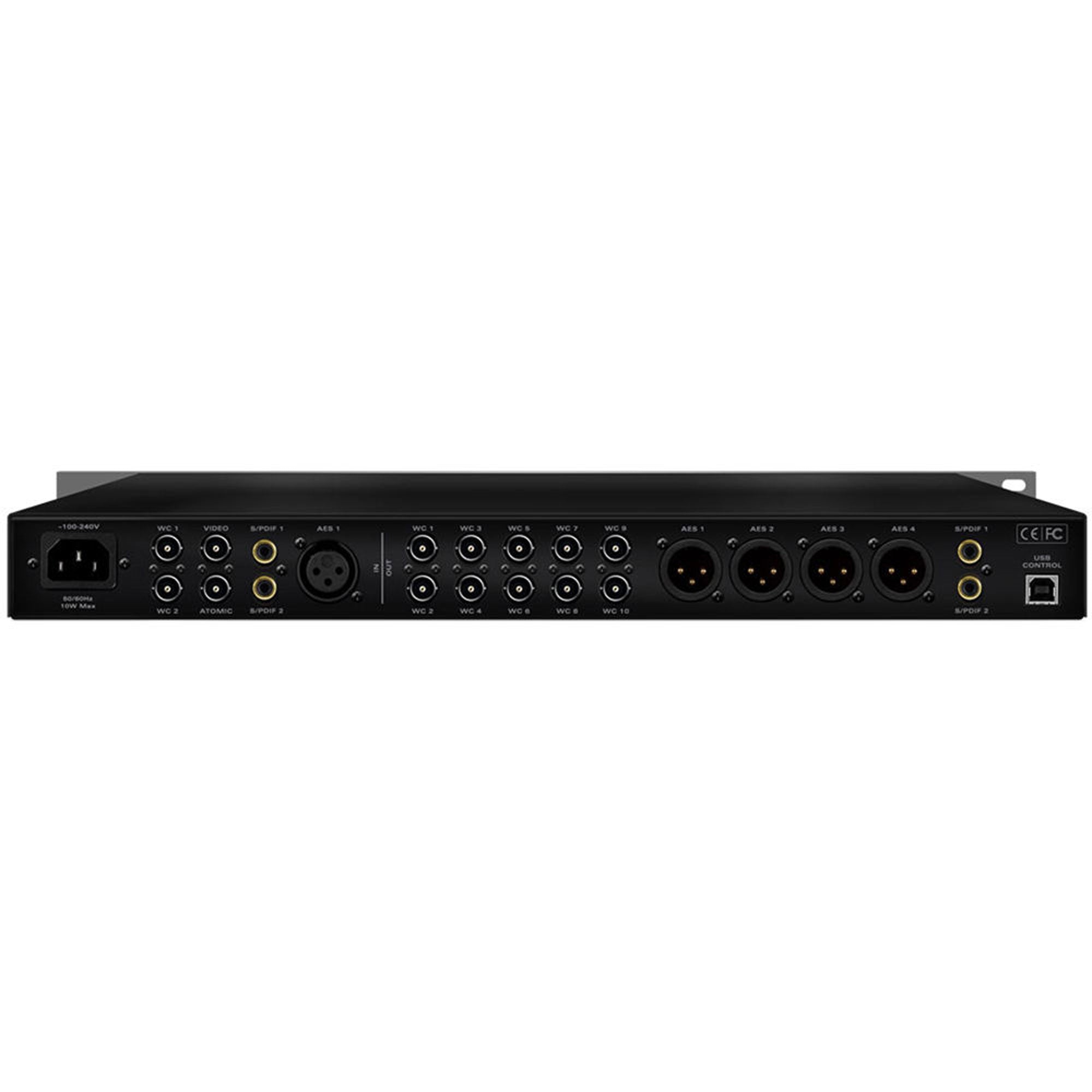

• Master Clock Outputs:
  10x Word Clock Outputs up to 768kHz
  4x AES/EBU Outputs up to 192kHz
  2x S/PDIF Outputs up to 192kHz
• Inputs:
  2x Word Clock Inputs up to 768kHz
  1x Video Input accepting wide range of SD and HD video signals
  1x Atomic Input
  2x S/PDIF Inputs up to 192kHz
  1x AES/EBU Input up to 192kHz
  1x USB Input for control
• Humidity: 30 - 80% RH non-condensing
• Clocking System:
  4th Generation Acoustically Focused Clocking
  64-bit DDS
  Oven Controlled Crystal Oscillator
• Clock Calibration: < +/-0.001 ppm
• Clock Stability: <+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F
• Clock Aging: < 1 ppm per year
• Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
• Sample Rates (KHz): 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)
• Operating Temperature: 0 - 50°C, 32-122°F
• Weight: 2.65 kg/5.84 lb
• Dimensions:
  482.6 (W) х 230 (D) х 44 (H) mm
  19 (W) x 9.05 (D) x 1.75 (H) inch
• Power Supply: AC Universal Input ~95-245V, 20 Watts Max

System requirements

• Windows
• OS: Windows 7/8/8.1/10
• Disk Space: Minimum 512 MB available disk space
• USB: 1x USB 2.0 Port
• Required USB bandwidth (for firmware update): 80%-90%
• CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
• Memory (RAM): 4GB Minimum (8GB or more Recommended)
• MAC
• OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
• Disk Space: Minimum 512 MB available disk space
• USB: 1x USB 2.0/3.0 Port
• Required USB bandwidth: 80%-90%
• Memory(RAM): 4GB Minimum (8GB or more recommended)
• CPU: Intel Core 2 Duo (Minimum) Intel Core i3  or higher (Recommended)
• Additional Info: Internet connection required for product activation.
