Key Features
- Splits & Boosts DMX Lighting Control
- 3- & 5-Pin XLR Input/Output Jacks
- Splits 1 Input to 4 Boosted Outputs
- Output Drivers to Boost Signal
- Electronically Isolated Outputs
- Single Thru Port with No Output Boost
- Integrates into Any DMX-512 System
- 1 RU Rack Size
- Rack Ears Included
Description

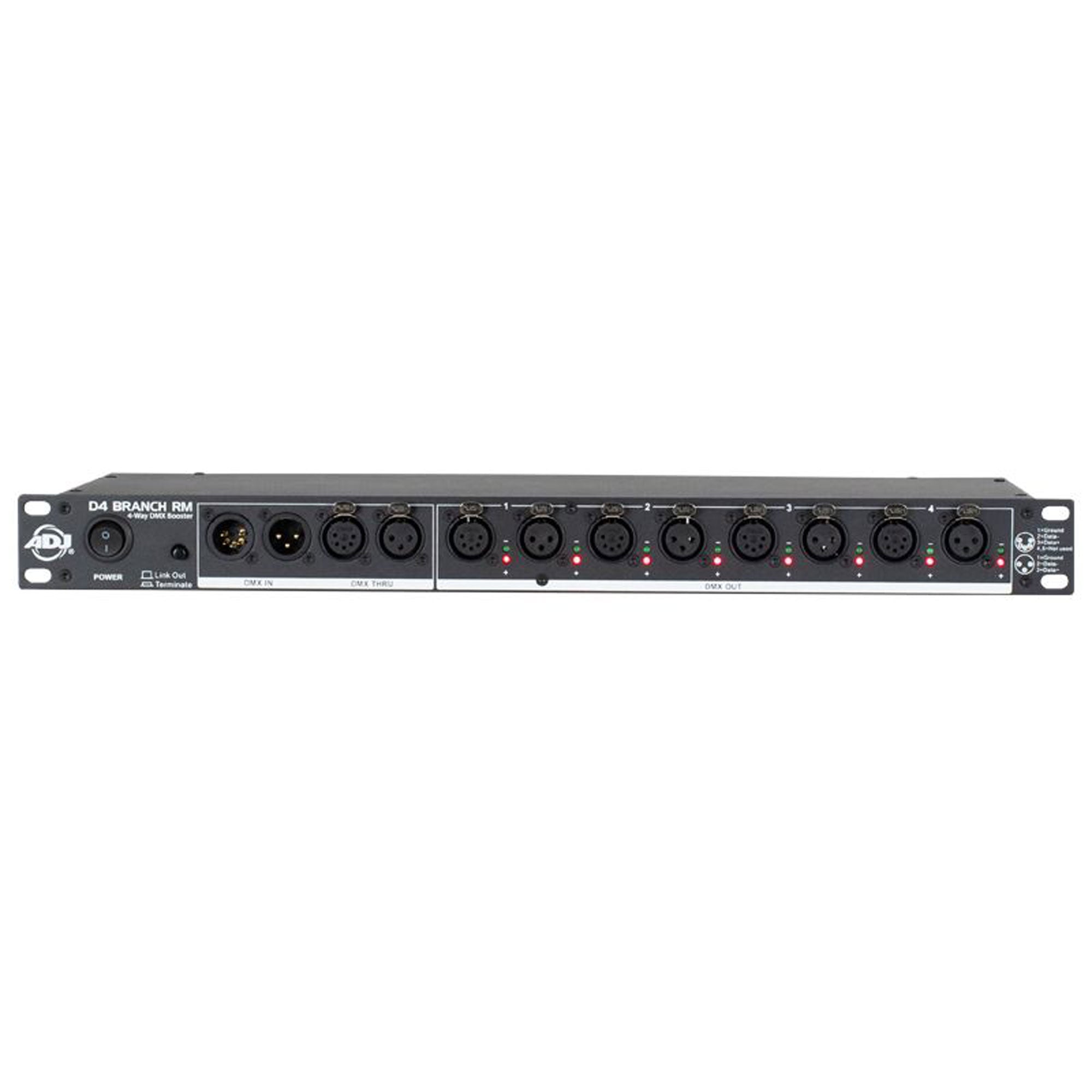

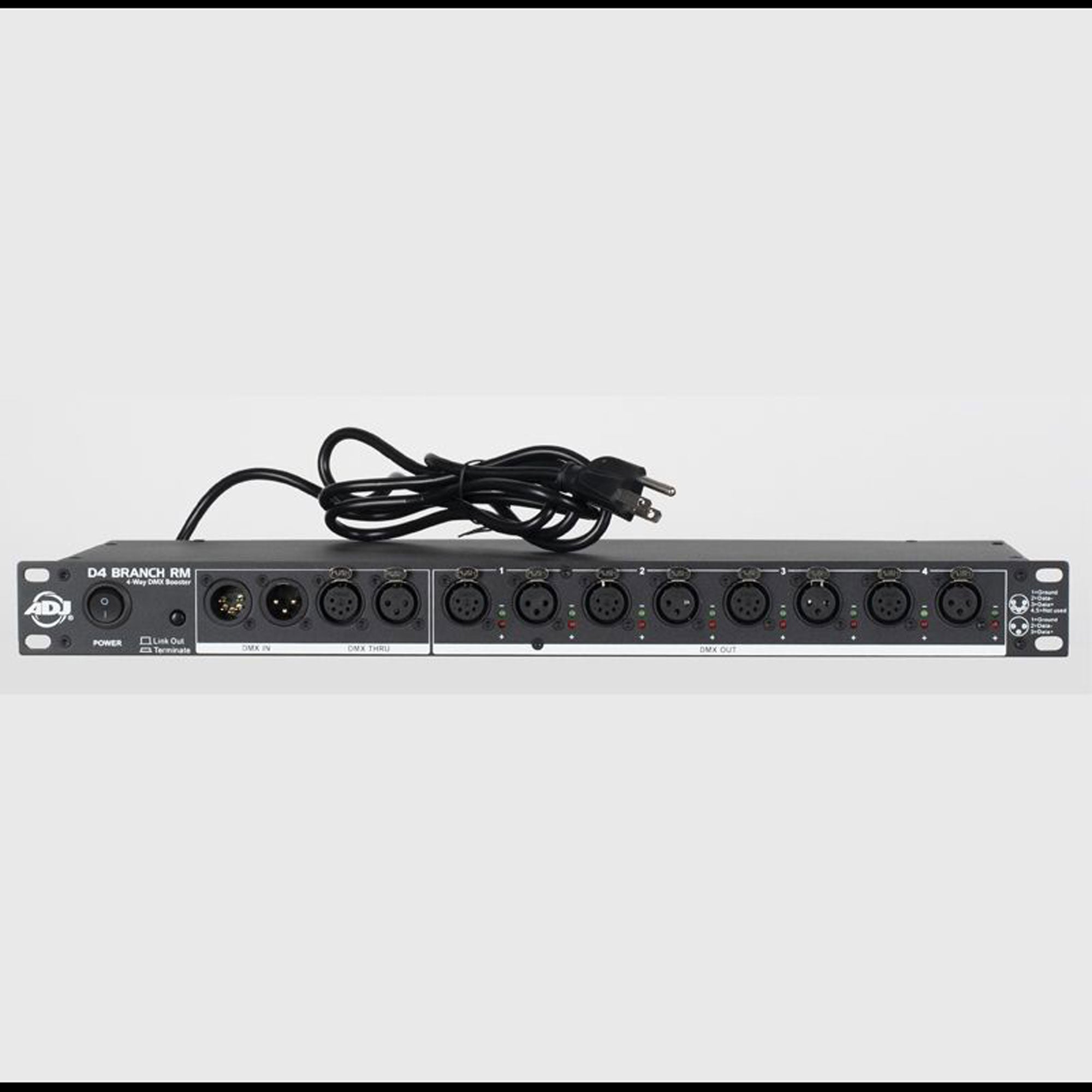

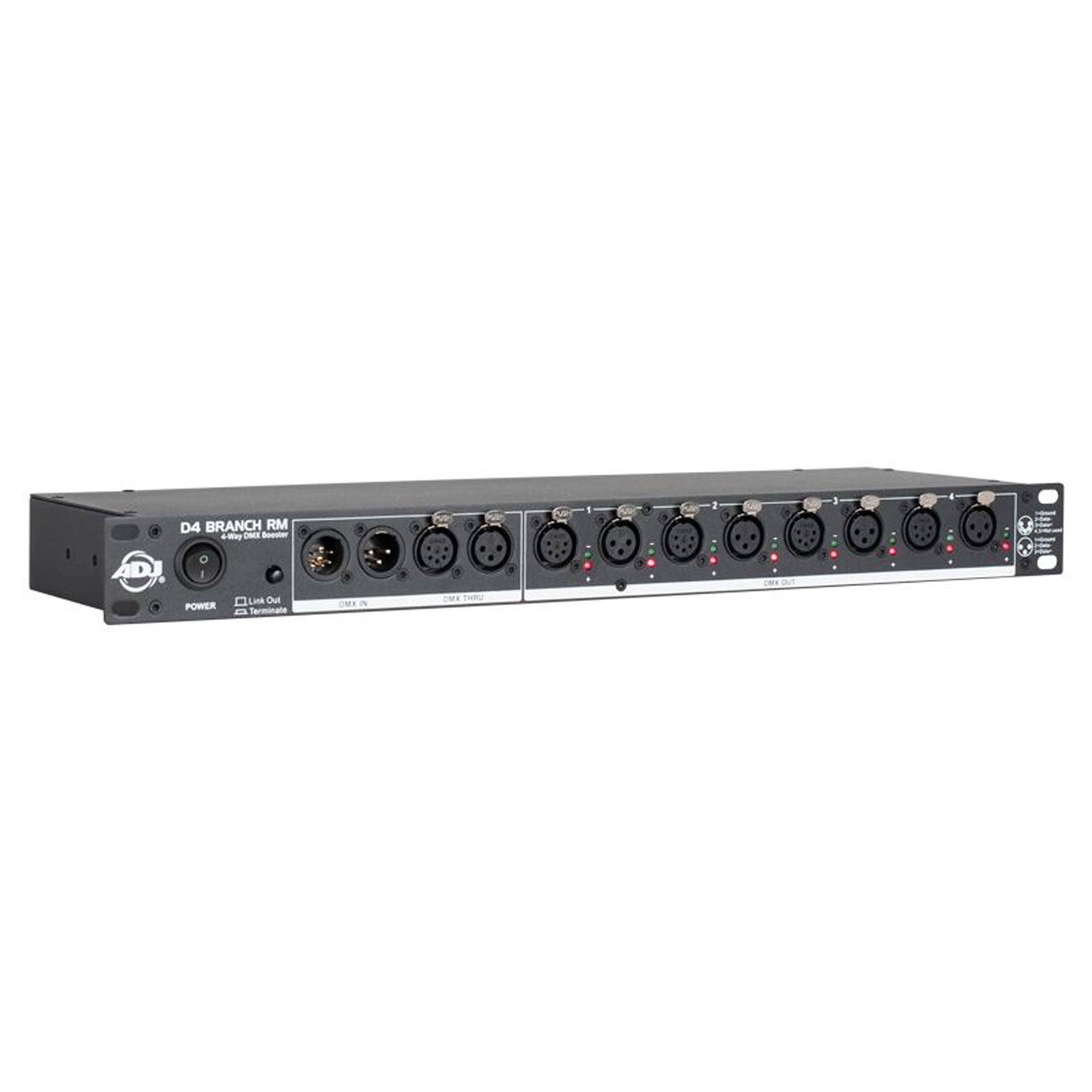

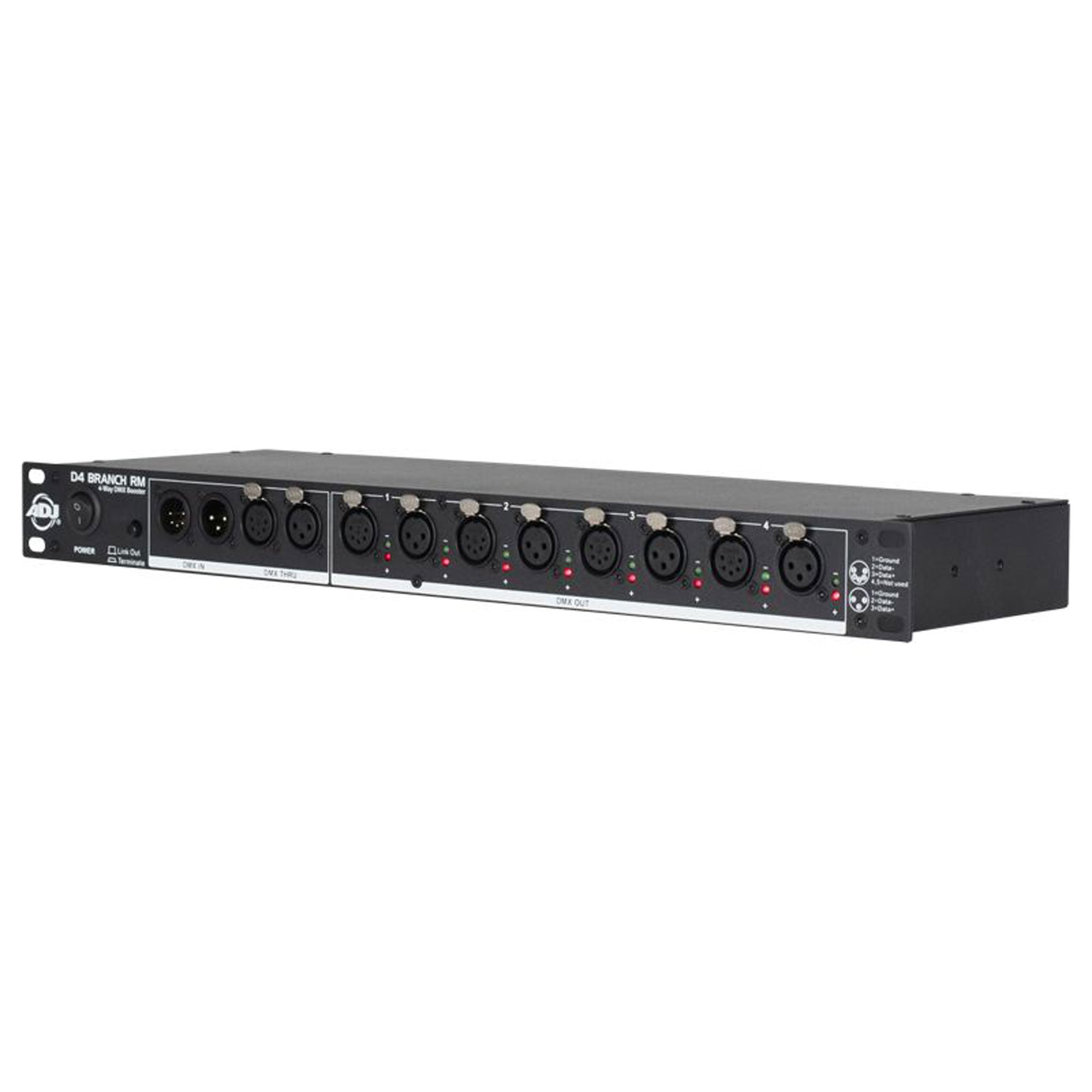

Single Rack Space, 4-Way Distributor/Booster with 3-Pin and 5-Pin XLR Input and Output Jacks
The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.
Features:
- 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
- Built-in signal amplifier boosts the DMX signal for each port
- Link / Terminate Button for Easy Troubleshooting
- DMX Status LED Indicator
- (1) 3-pin + (1) 5-pin XLR Isolated Inputs
- (1) 3-pin + (1) 5-pin XLR Passive Loop Output
- (4) 3-pin + (4) 5-pin XLR Isolated Outputs
Specifications:
- SIZE / WEIGHT:
- 19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)
- 5.3 lbs. (2.4kg)
- ELECTRICAL:
- AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)
- APPROVALS:
- cETLus pending
- CE approved
- FCC compliant
Details
- Manufacturer: American DJ
- MPN: D4 BRANCH RM
- Model Number: D4 Branch RM
- UPC: 818651029369
