Key Features
- Effects Processor
- USB Connection for Mac and PC
- 12 Input Channels
- 3-Band EQ Section
- Four AUX Sends
- Mono and Stereo Channels
Description
12-channel Mixer with 6 Mic/Line Channels, 3 Stereo Channels, 16 Built-in Effects, and USB

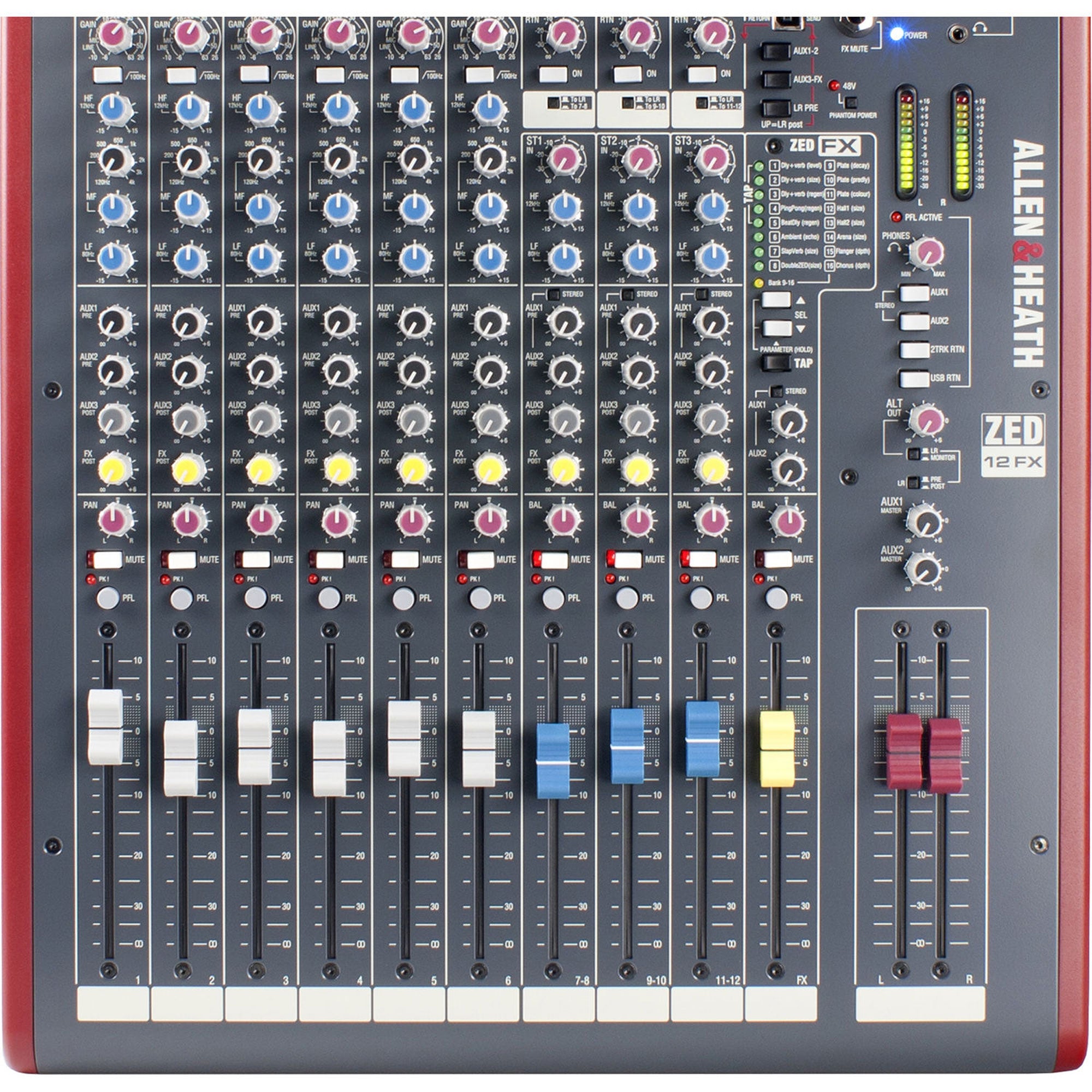

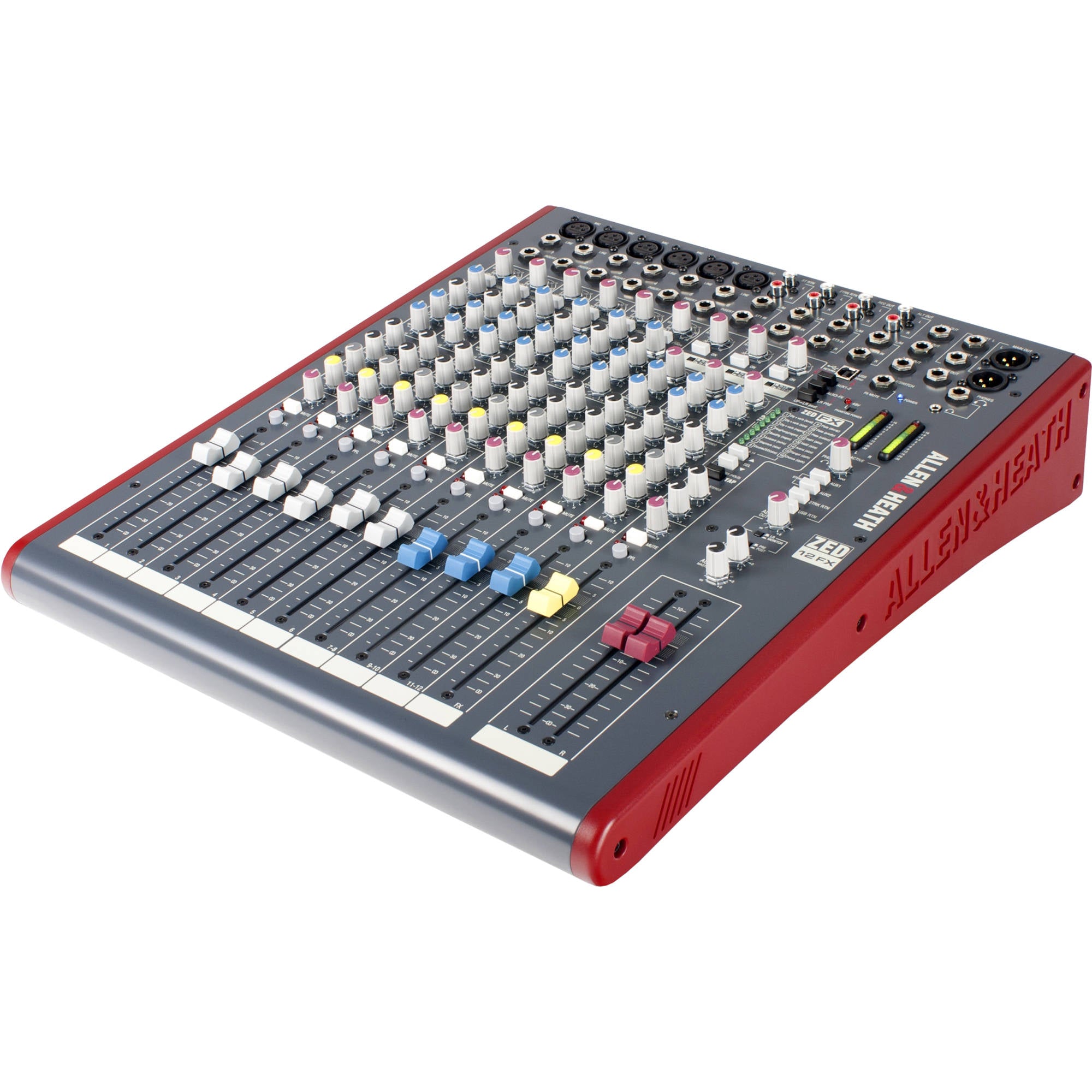

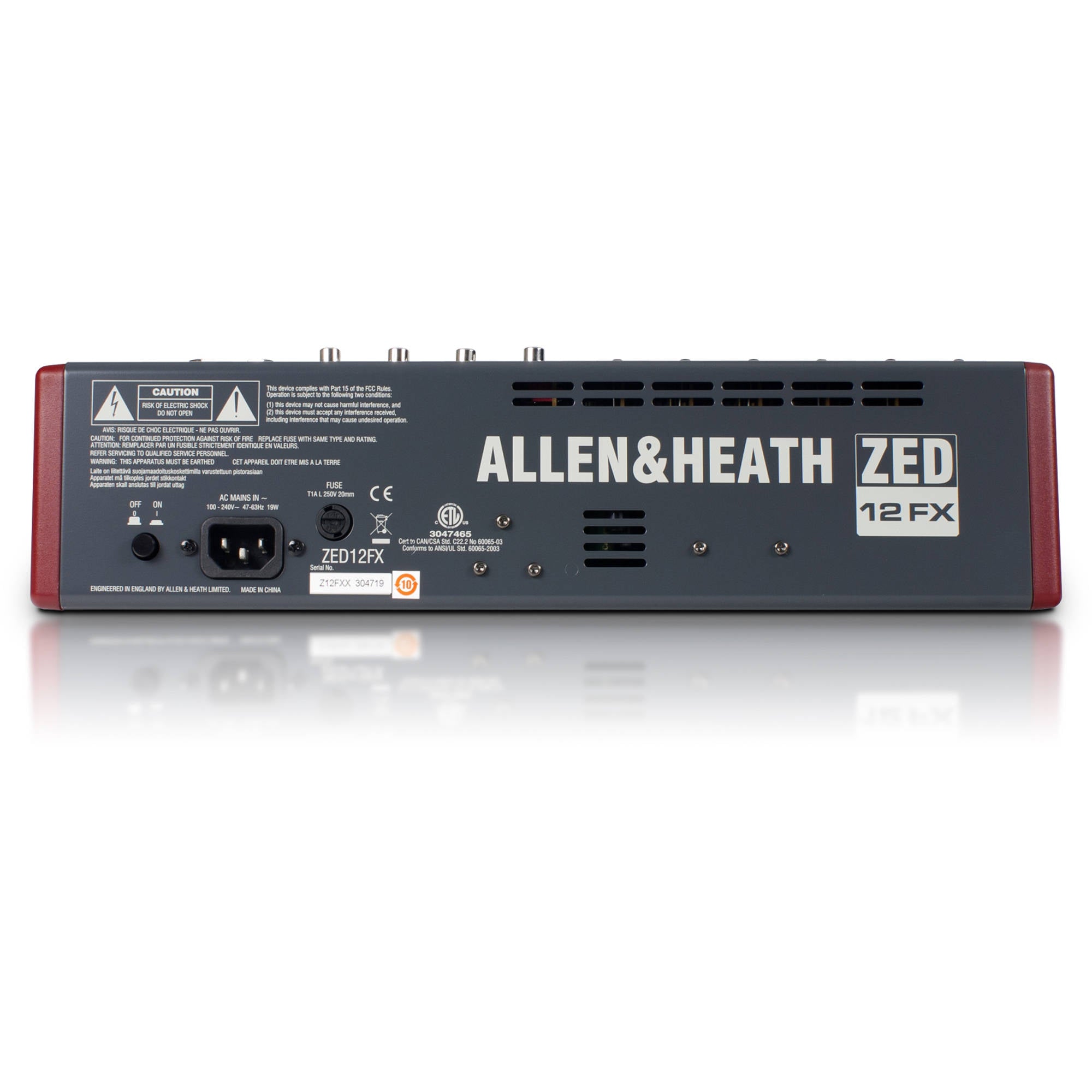

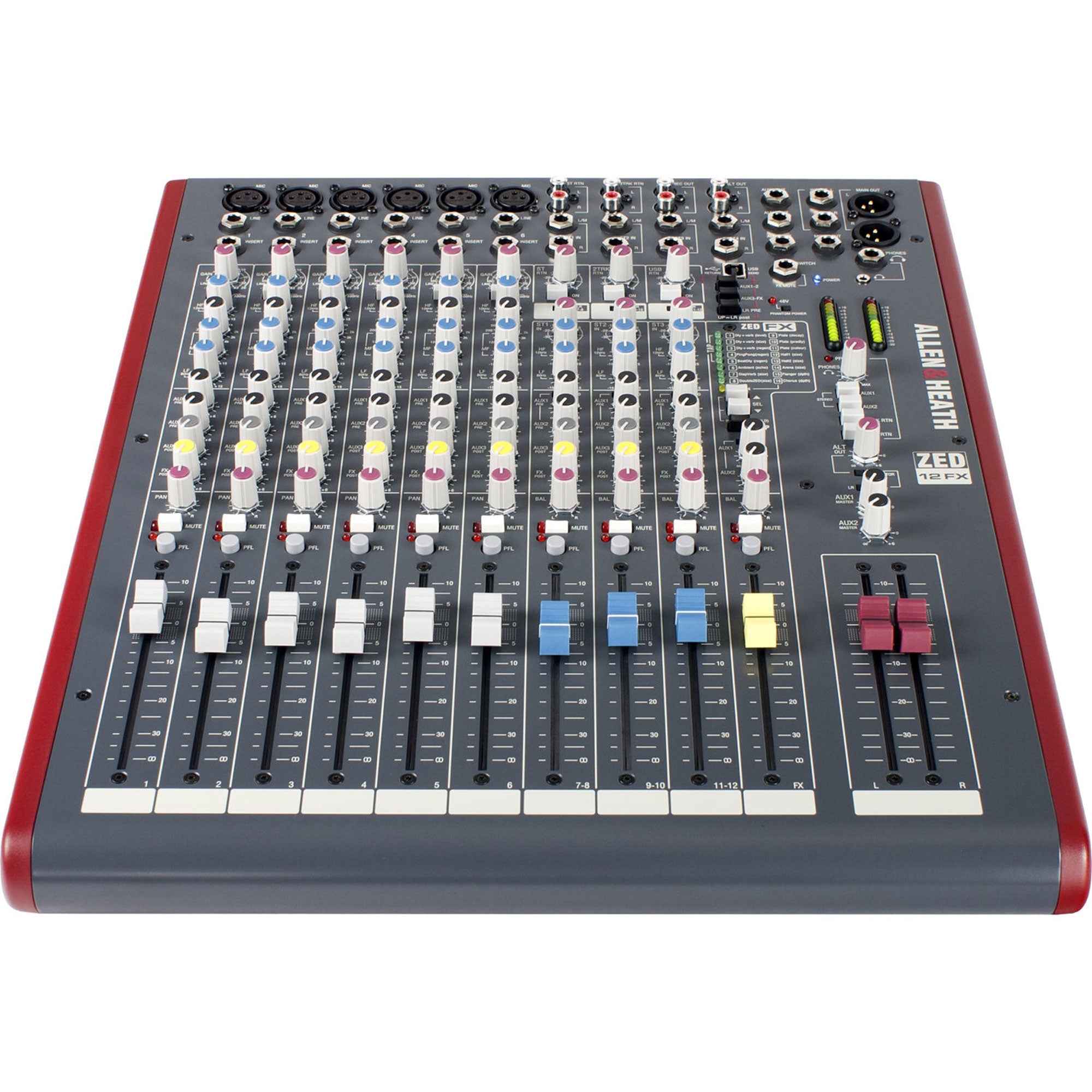

12-Channel Recording Mixer with USB Connection and Effects
The Allen and Heath ZED-12FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-12FX features 12 inputs comprised of 6-mono and 3-stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. An onboard effects processor provides high quality delay and reverb effects. A USB connector delivers direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included.
Onboard Effects
An internal effects processor provides an array of high quality delay and reverb effects. A dedicated return channel provides flexible effects level control.
USB Connection
A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.
Six Mono Inputs
There are six mono channels with line and microphone input connections.
Three Stereo Inputs
The three stereo channels feature stereo-paired 1/4" phone connectors for stereo devices such as recorders, effects, keyboards, etc.
Flexible EQ Section
All mono channels feature a 3-band EQ with sweepable mid-range. The stereo channels feature 2-band EQ.
Inserts
Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
Balanced Outputs
The main output section feature a pair of balanced XLR connectors.
Features:
- 6 mono channels
- 3 stereo channels with 2-band EQ and inputs for extra sources
- 16 internal time-delay effects
- Neutrik mic XLR
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain 'DuoPre' mic line input
- 3 band EQ with MusiQ
- 2 pre-fade Aux sends
- 1 post-fade Aux send
- 1 internal FX send
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Cakewalk SONAR LE bundled with mixer
- Rack ears available
