Allen & Heath GX4816 48x16 XLR In/Out Portable GX Expander with DX Sockets

48 XLR Input / 16 XLR Output Portable GX Expander with DX Sockets

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive* mixing systems.

*dLive compatibility due in Firmware V1.9

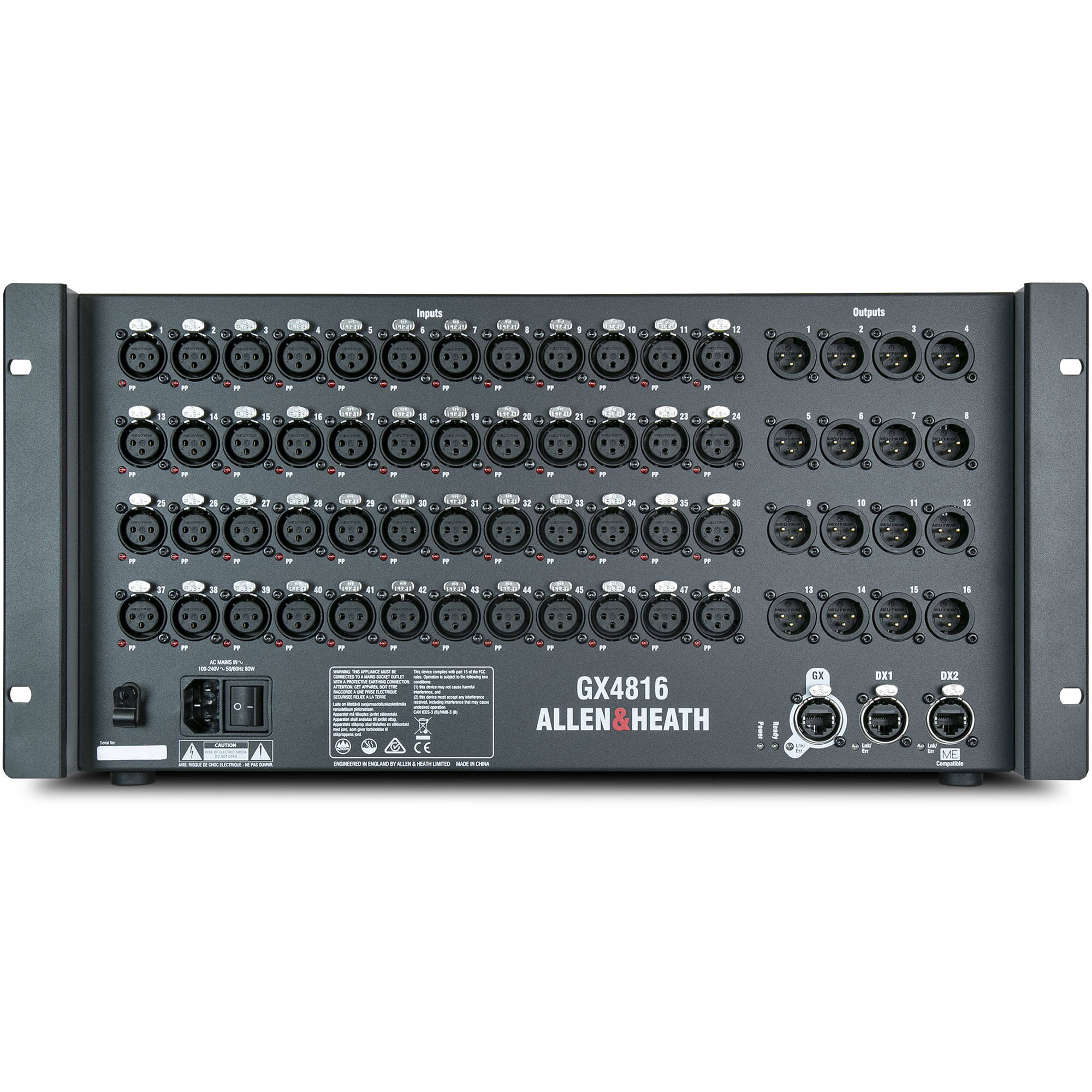

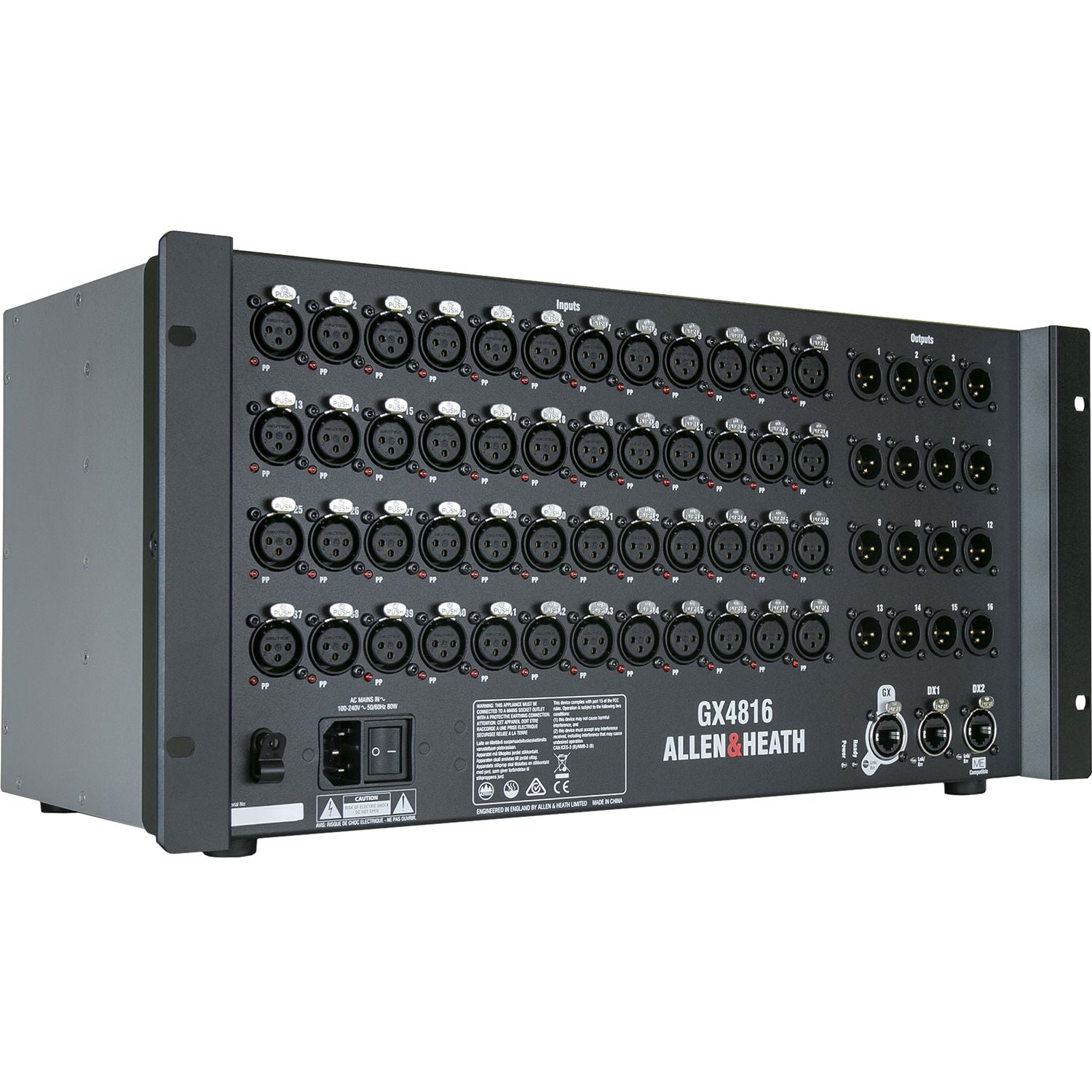

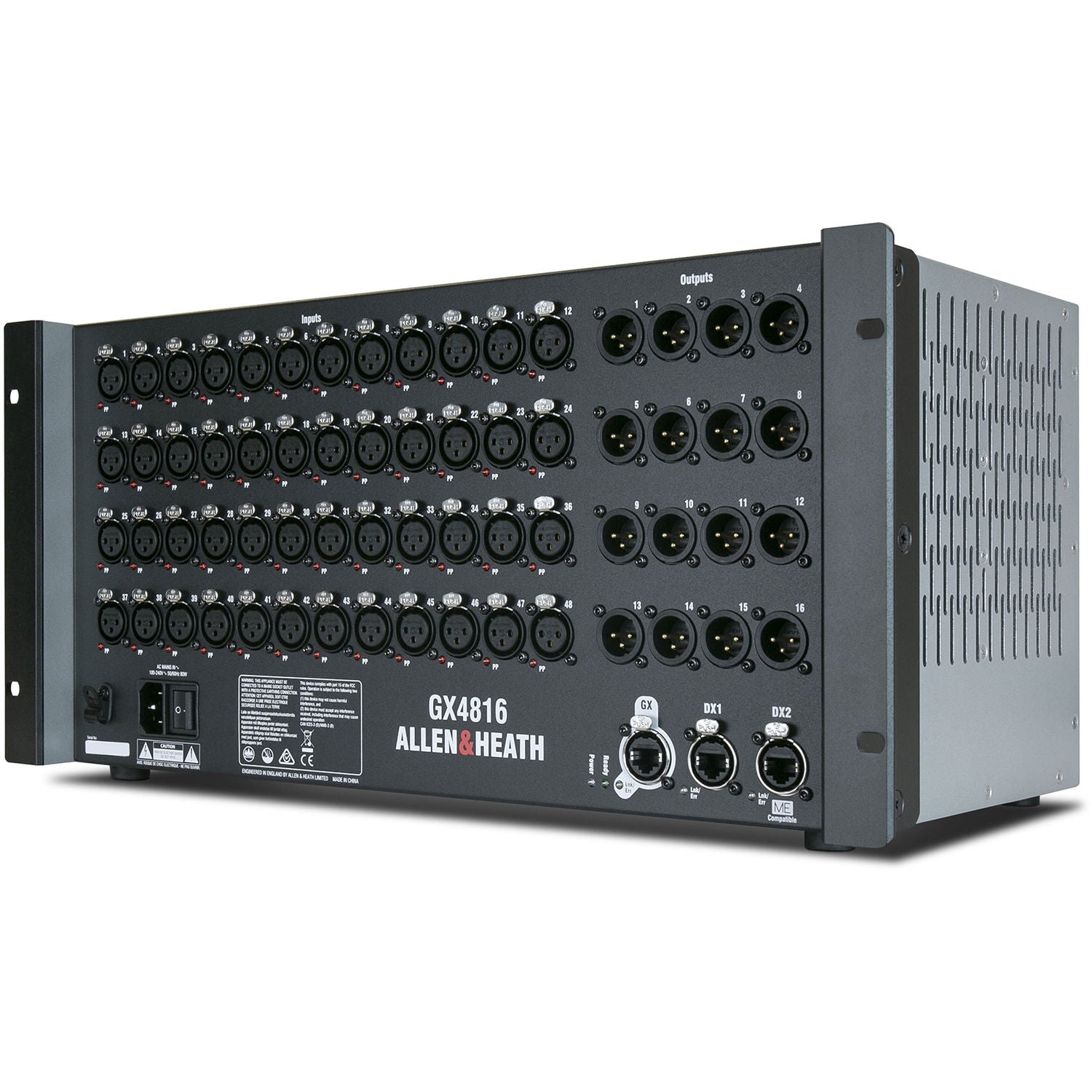

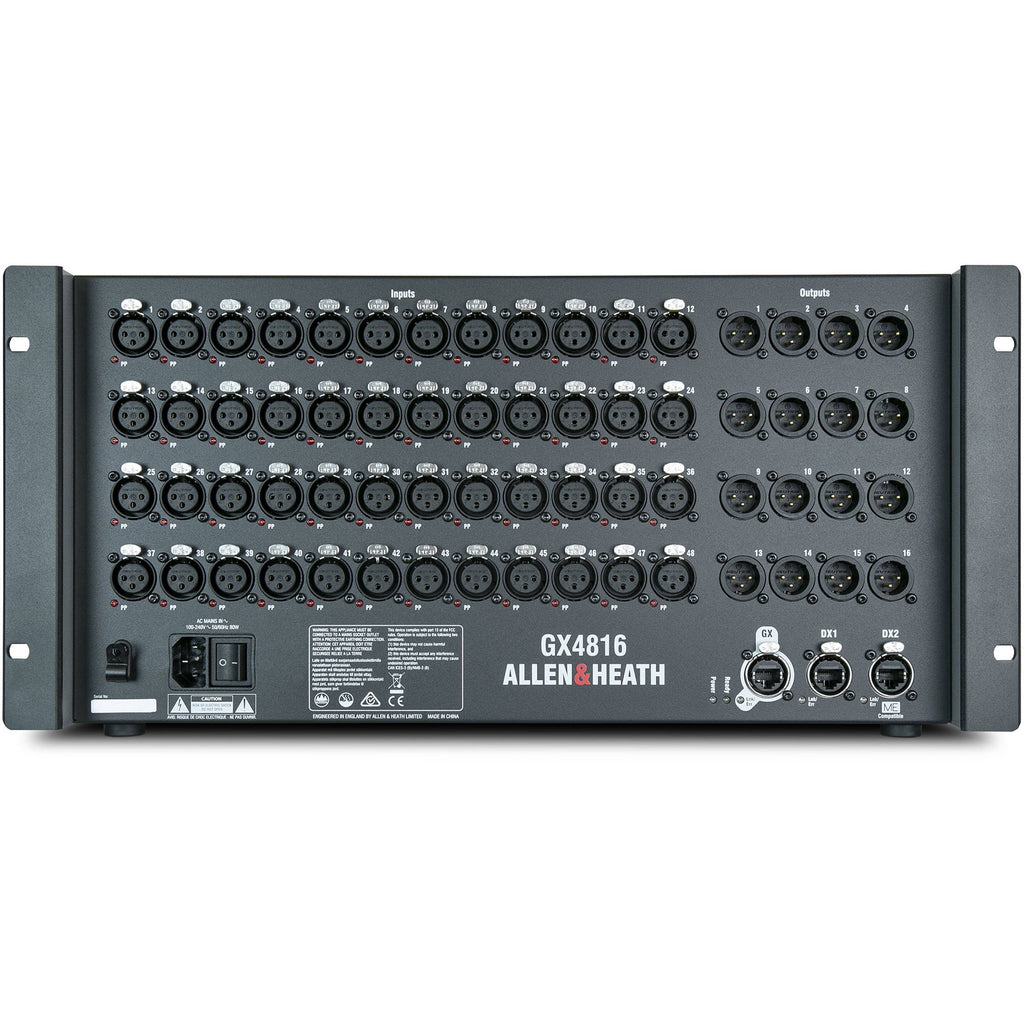

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.

GX4816 connects via a single Cat5e cable to an SLink socket on a SQ or Avantis, or to a gigaACE audio network card on a dLive system.

Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.

Features:

• 48 Mic Preamps on XLR with Phantom Power status LEDs
• 16 XLR Line Outs
• 96kHz operation
• DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
• DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system.
• Compatible with SQ, Avantis and dLive (firmware 1.9 onwards) systems
• Multiple GX4816 can be added to a system:
• Up to 2 GX4816 units can be added to a SQ system
• Up to 2 GX4816 units can be added to an Avantis system
• Up to 5 GX4816 units can be added to a dLive S Class system
• Up to 3 GX4816 units can be added to a dLive C Class system
• Rack-mounted (5u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports
