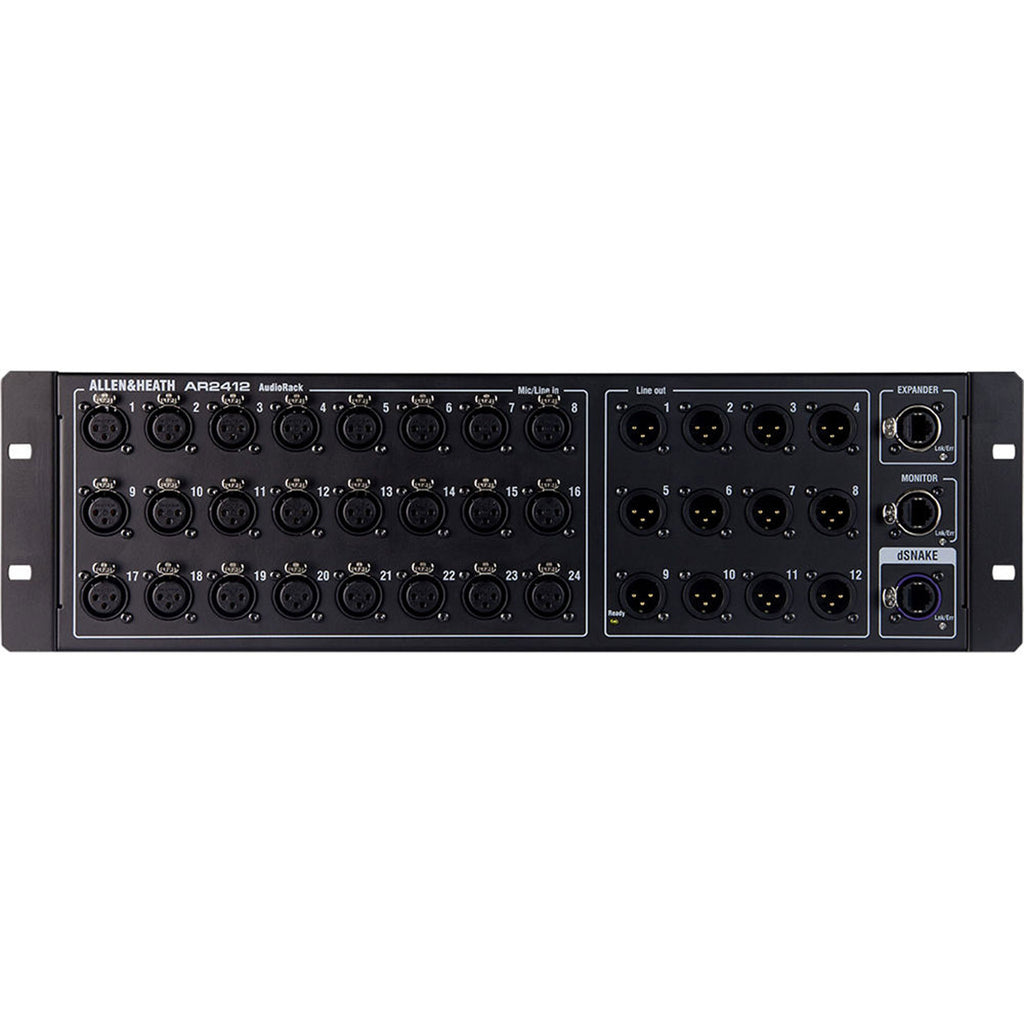

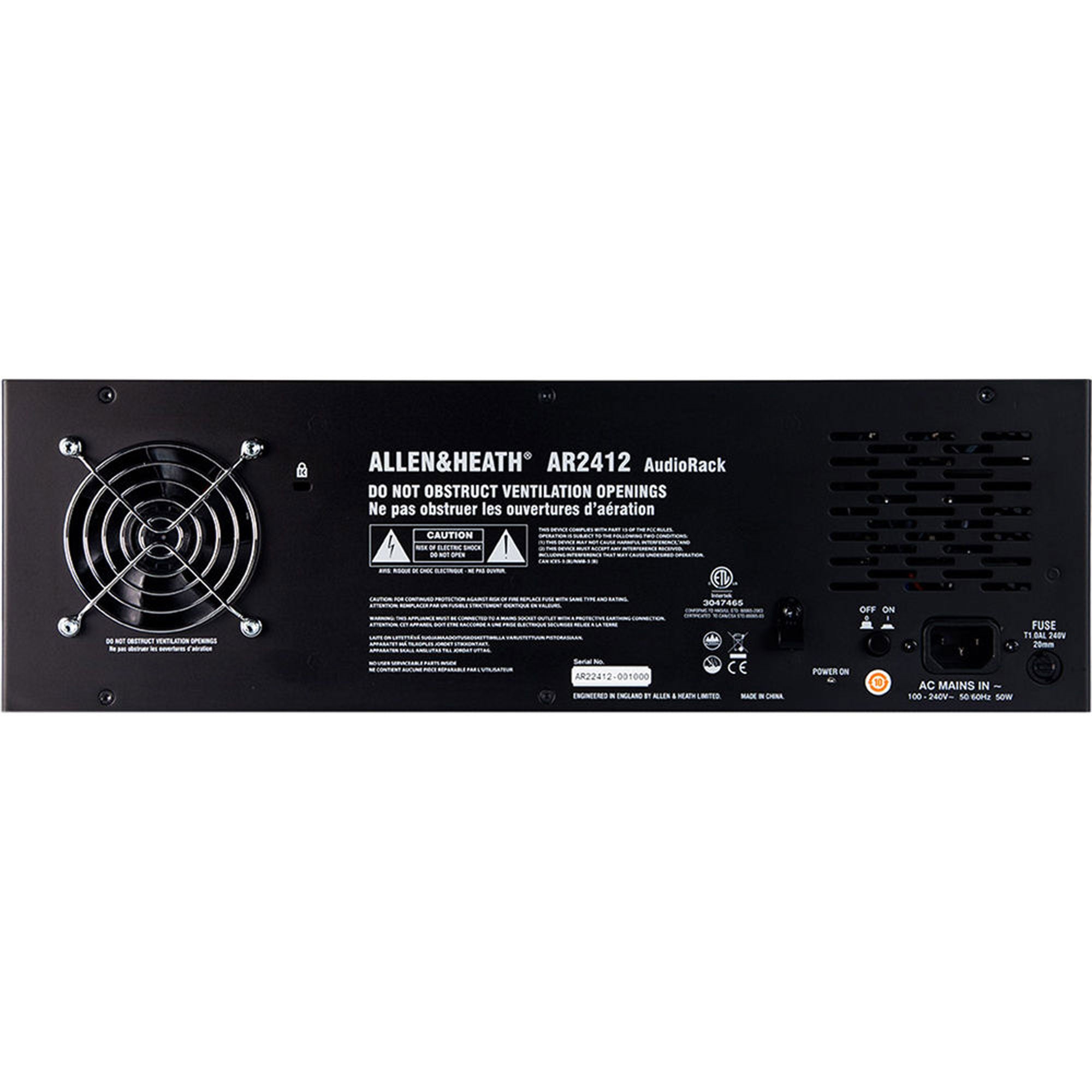

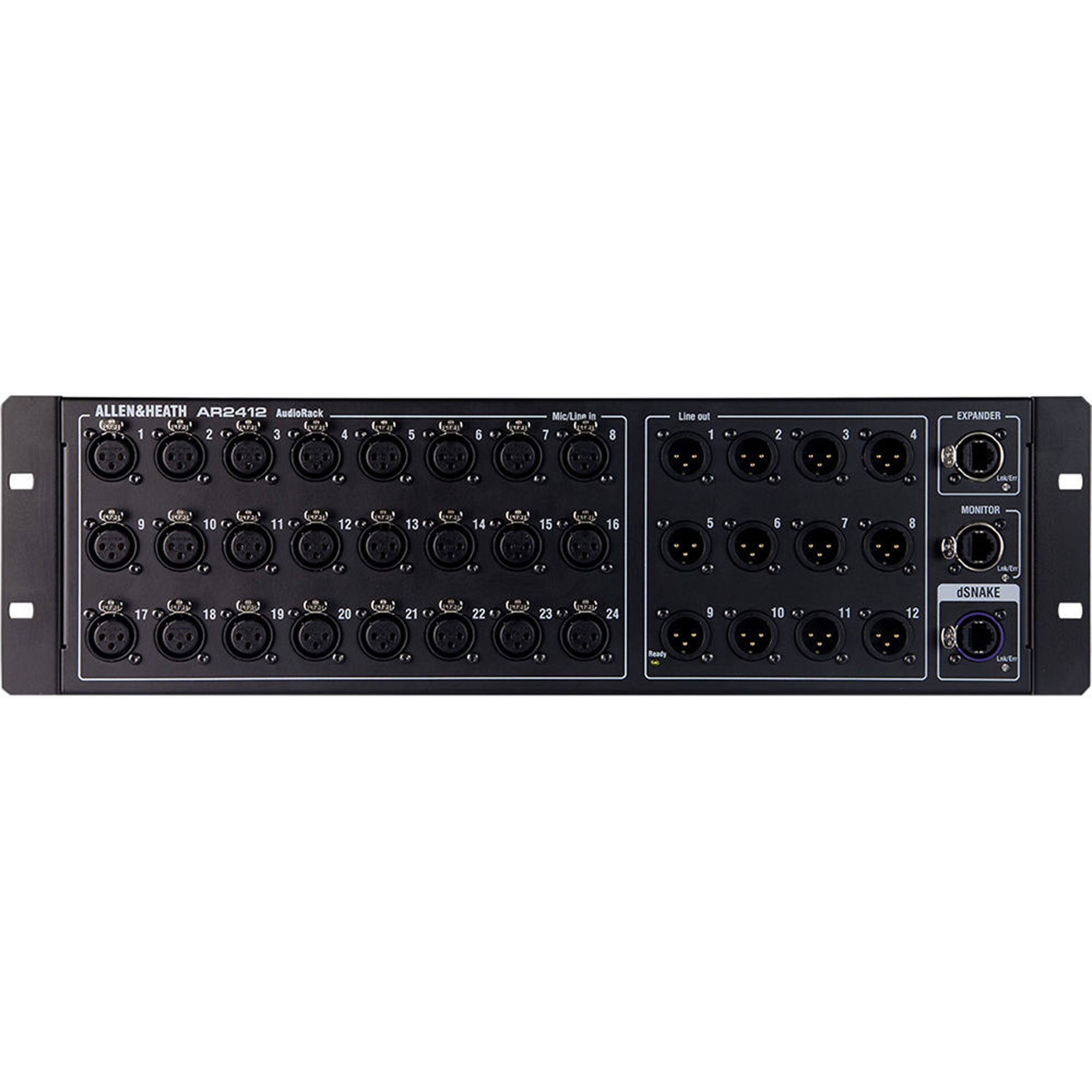

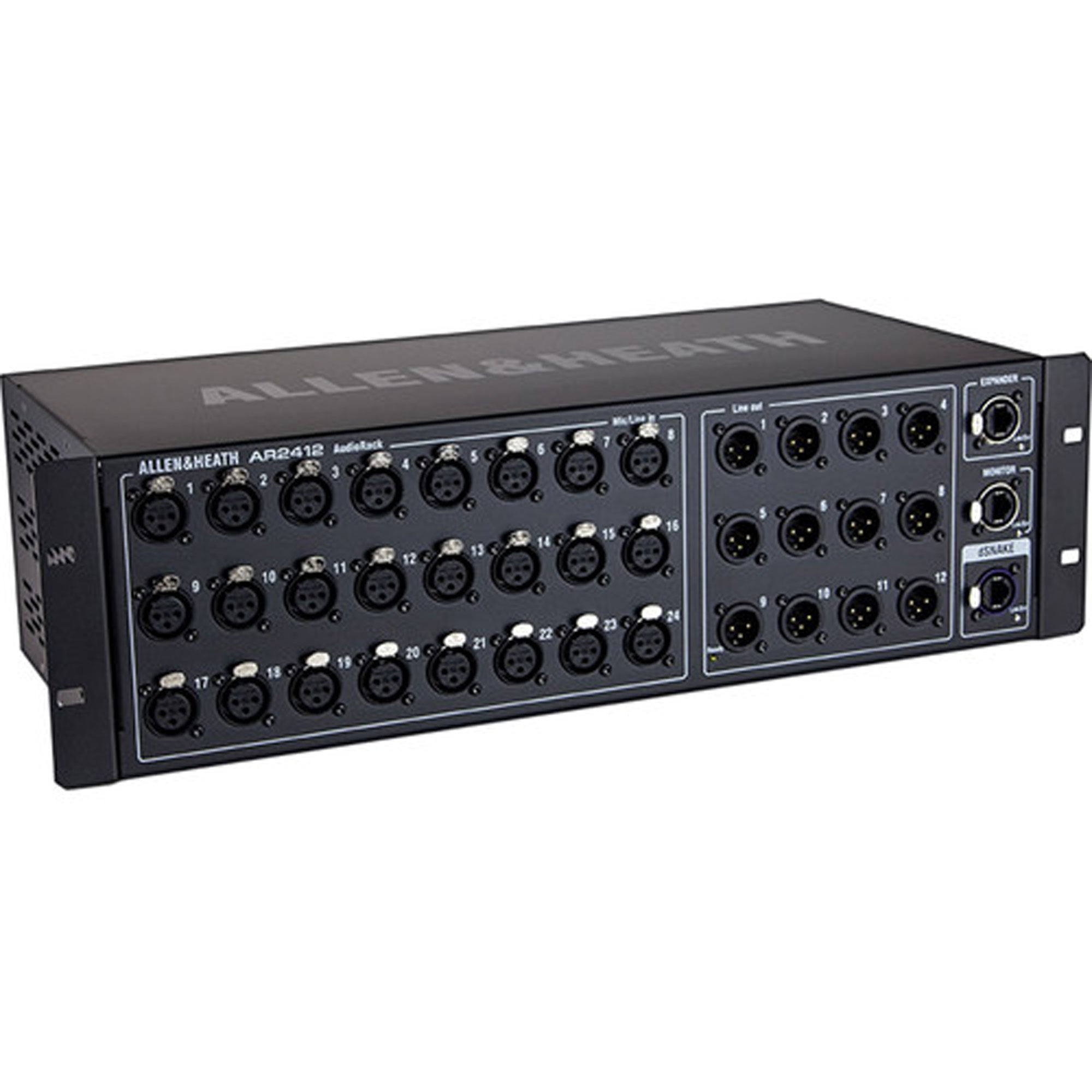

Allen & Heath AR2412 AudioRack for GLD

24in / 12out 48kHz Expander

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM audio matrix processors.

24 Mic Preamps

+60dB of gain with -20dB pad for line level sources.

12 Line Outs

Balanced, relay protected line outputs on XLR.

Expander & Monitor Ports

Dedicated ports for connection to an AR84 or AB168, and to the ME Personal Mixing System.

Plug-and-Play

No configuration required, just connect to your mixer and you're ready to go. Firmware updates are handled automatically by the mixer.

Maximum Flexibility - Put It Where You Need It

The AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning and includes rack ears for mounting in a 3U 19" rack space.

The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.
