Allen & Heath AHM-16 16x16 Audio Matrix Processor with 8x8 I/O

16-in/16-out Audio Matrix Processor

With an unrivalled price-performance ratio, AHM-16 delivers a 16x16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.

16x16 Processing Matrix
Flexible routing with configurable processing on all 16 outputs.

8x8 Local Analogue I/O

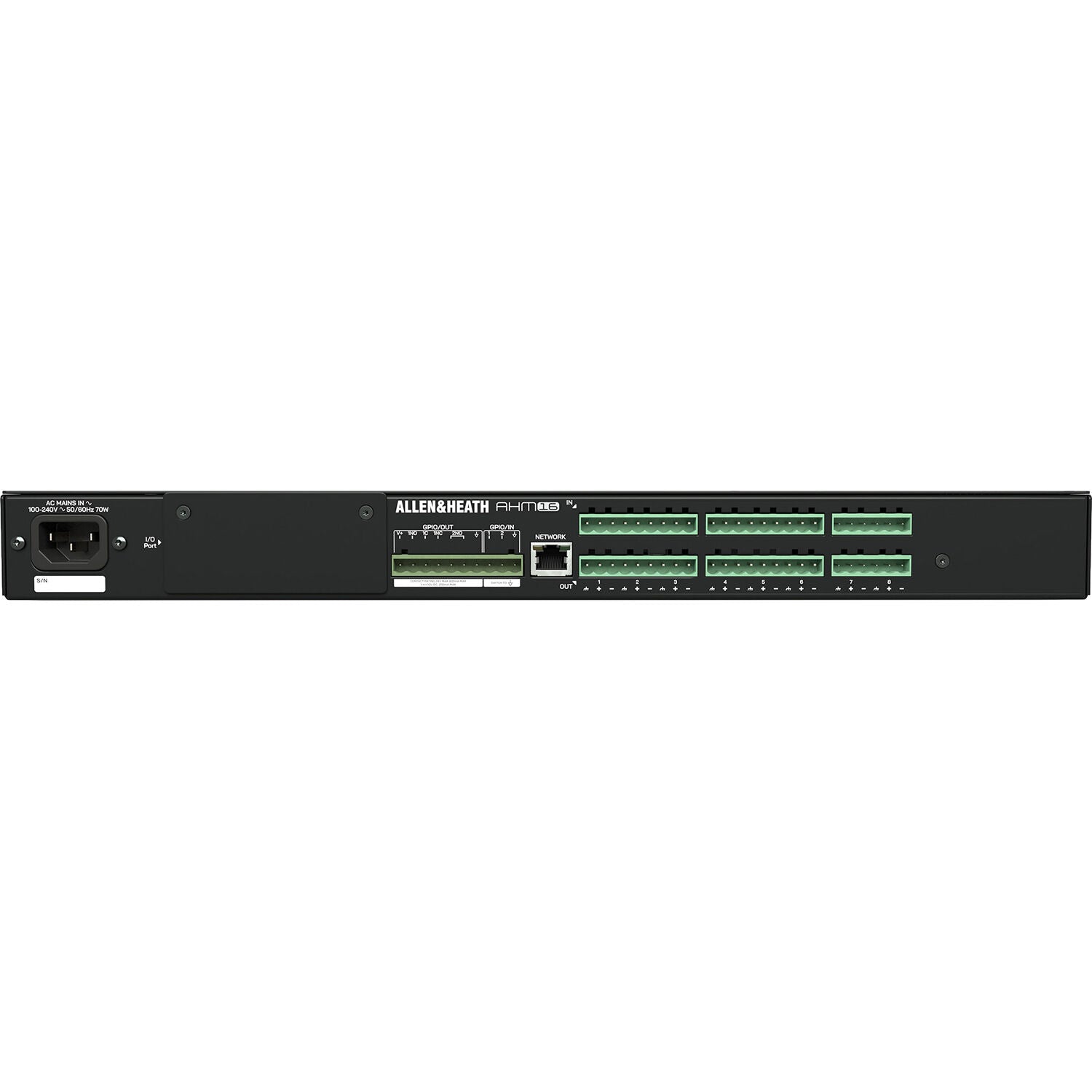

8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors.

Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.

Sound Management Tools

• Automatic Mic Mixer

• ANC (Ambient Noise Compensation)

• Priority Ducking

• 8-band PEQ, dynamics and delay on every input and zone

• Speaker processing with x-over filter, delay, limiter and PEQ


Always In Control

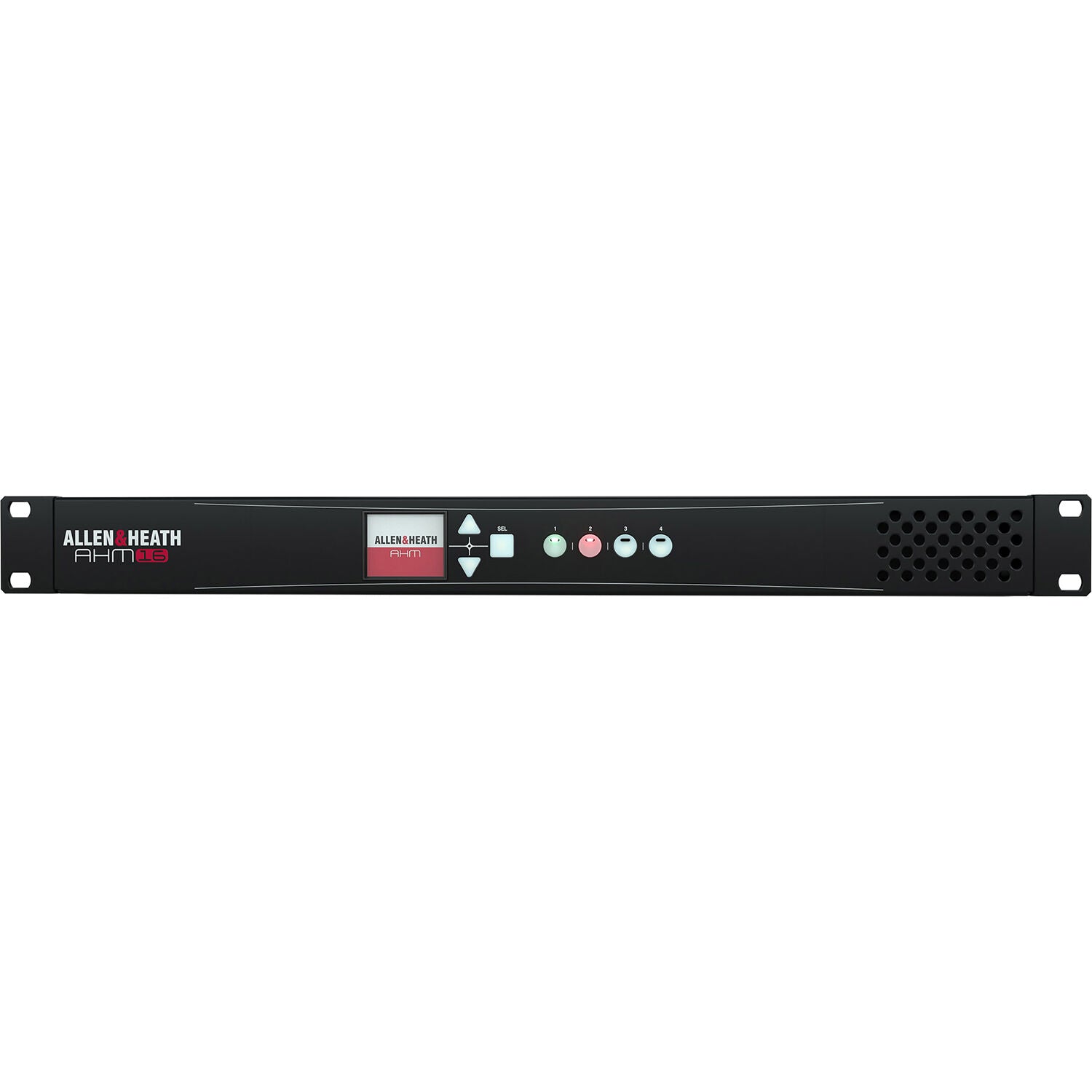

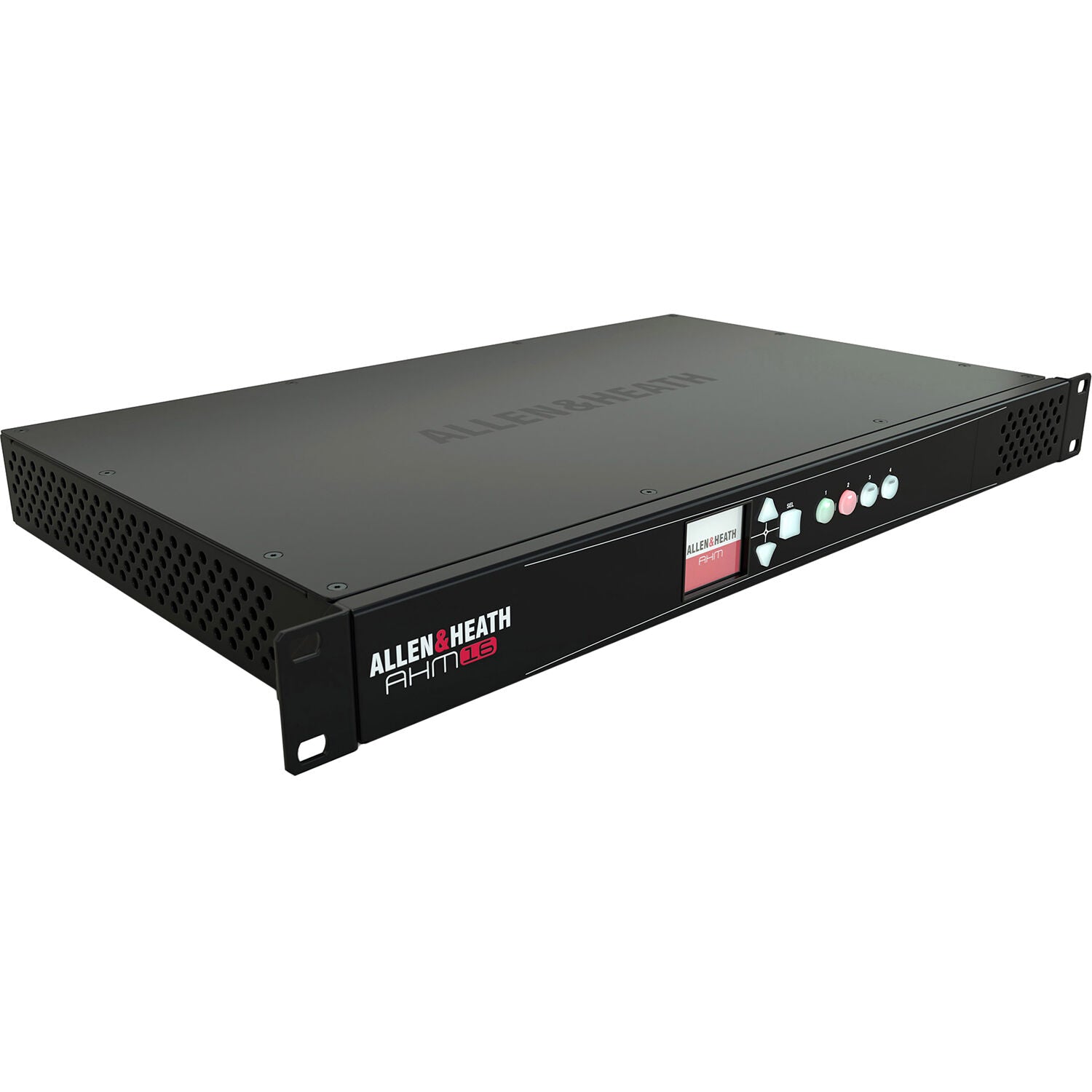

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

Features

• 16x16 Processing Matrix

• 8x8 Local Analogue I/O

• I/O Port for Audio Networking (Up to 128x128)

• Dante 96kHz Option Card (AES67 and DDM Ready)

• SLink 128x128 Option Card for Audio Expansion

• 16 Configurable Processing Outputs - Mono / Stereo Zones or Speaker Processing

• 96kHz FPGA Core With Ultra-low Latency

• Front Panel Screen and Navigation

• 4x SoftKeys

• Compatible With IP1, IP6, IP8 Remote Controllers

• 2x2 Local GPIO Plus Networkable GPIO Interface

• TCP/IP Protocol for Third Party Integration

• Crestron, AMX and Extron Drivers

• Mac / Windows System Manager Software

• Custom Control app and Editor for BYOD

• 4 User Profiles

• Integrated Stereo Playback

• Event Scheduler
