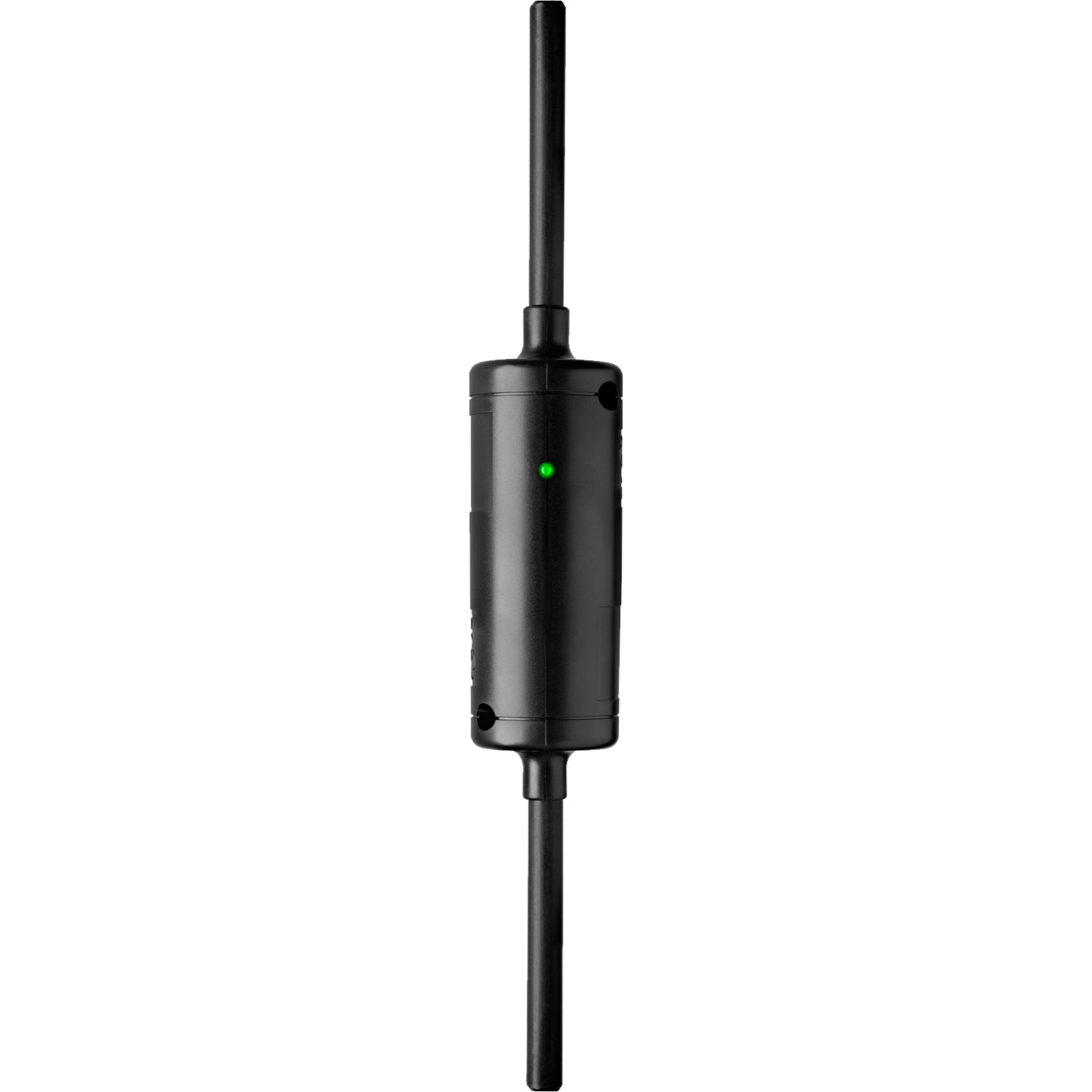

AKG RA4000 B/EW Active Omnidirectional Wide-Band Uhf Antenna

Active Omnidirectional Wide-Band Uhf Antenna

The RA4000 B/EW is an active omnidirectional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, providing a covering angle of 360° and a total gain of 18dB. The RA4000 B/EW has a built-in amplifier to compensate long cable runs. With dedicated antenna components, it works for cable lengths up to 300m. The RA4000 B/EW is remotely powered through the antenna cable. The antenna has waterproof construction and can be used for indoor and outdoor applications. Using the included universal stand adapter, the RA4000 B/EW can be mounted on floor stands with 3/8" or 5/8" screws.

Features:

• Integrated high-Performance Antenna Booster - 17dB total gain for cable lengths up to 300m (1000 ft)
• Remote Powering Via the Antenna Cable - Eliminates any extra Installation Effort
• Operates in an Ultrawide Frequency Range - From 470MHz to 952MHz for Universal Use
• Water-Resistant Construction - To Withstand Extreme Weather Conditions

Specifications:

• Switching bandwidth (from/to): 470 to 952 MHz
• Antenna gain: 17 dBi
• Covering angle: 360 Grad
• Dimensions:
  Length: 220 mm
  Width: 38 mm
  Net Weight: 65 g
• Antenna Input:
  Output current: 0; 0; 0
  RF Attenuation: 0; 0; 0
• Antenna Output:
  Amount: 1
  Type: BNC
  Gender: Female
  Note: RF output (50 Ohms)
  Recommended load impedance: 50 Ohms
• Design:
  Body: plastic
  Finish: black
• Powering Interface:
  Type: BNC
  Voltage: 8 to 8 V

Includes:

• 1 x RA4000 B/EW antenna
• 1 x Stand adapter
