Key Features
- Hemispherical Polar Pattern
- Condenser Element
- Low-Profile, Cylindrical Design
- Powered by 12-48V Phantom Power
- Line Level Output
- Unterminated Wires (No Connector)
Description
Ceiling, Wall or Tabletop Security and Surveillance Microphone with Line Level Pigtail Output, Powered by 12-14V DC
INCONSPICUOUS ASSISTANT for ticket-window, courtroom and security applications

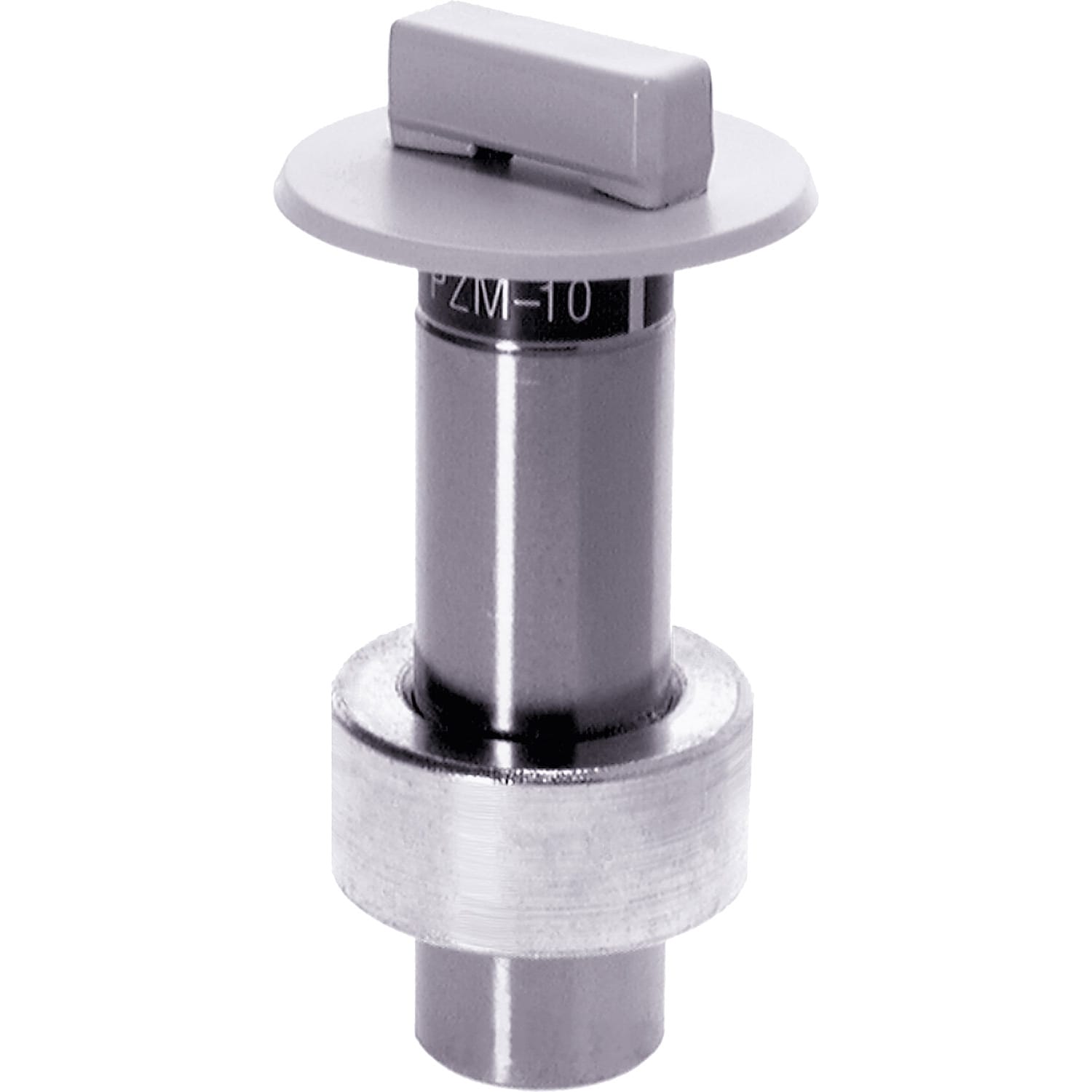

The PZM10 and PZM10LL, part of the Pressure Zone Microphone line, are designed for security, surveillance, and conference-table use. The special housing design allows the microphones to be mounted into tables, walls or ceilings easily and inconspicuously.
Using Pressure Zone Microphone technology, the PZM10 and PZM10LL are highly sensitive and deliver a wide and smooth frequency response. Thus the PZM10 and PZM10LL are characterized by excellent clarity and a consistent pickup anywhere around the mic.
Features:
- Hemispherical polar pattern for clear, intelligible pickup of speech
- Low-profile, cylindrical design perfect for wall or tabletop installation
- Choice of mic level output or line-level output (PZM10LL) for optimized level matching
- PZM10 powered by 12V - 48V phantom power, XLR connector connects to all standard mixers with phantom power out
- PZM10LL powered by 12V - 24V/DC, unterminated wires for the most flexible connectivity
Specifications:
- General
- Audio Frequency bandwidth: 80 to 20000 Hz
- Sensitivity: 2.5 mV/Pa
- Equivalent Noise Level: 26 dB-A
- Signal to Noise: 68 dB-A
- Recommended Load Impedance: 2000 Ohms
- Polar Patterns
- Hemispherical
- Powering Interface
- Voltage: 12 to 48 V
- Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
- Design
- Finish: off-white
- Dimensions / Weight
- Height: 72 mm
- Diameter: 39 mm
- Net Weight: 74 g
