Key Features
- 75 Ohm Nominal Impedance
- 1 Conductor
- 18 AWG Copper Covered Steel
- Shield 1 Overall 100% Foil + 60% Braid
- Shield 2 Overall 100% Foil + 40% Braid
- Overall PVC Jacket
- Belden 1189A Equivalent
- Sold by the Foot
- Shipped in a Continuous Length
Description
18 AWG Quad-Shield 75 Ohm RG6/U CCS Type CATV Coaxial Cable - Black - Sold by the Foot

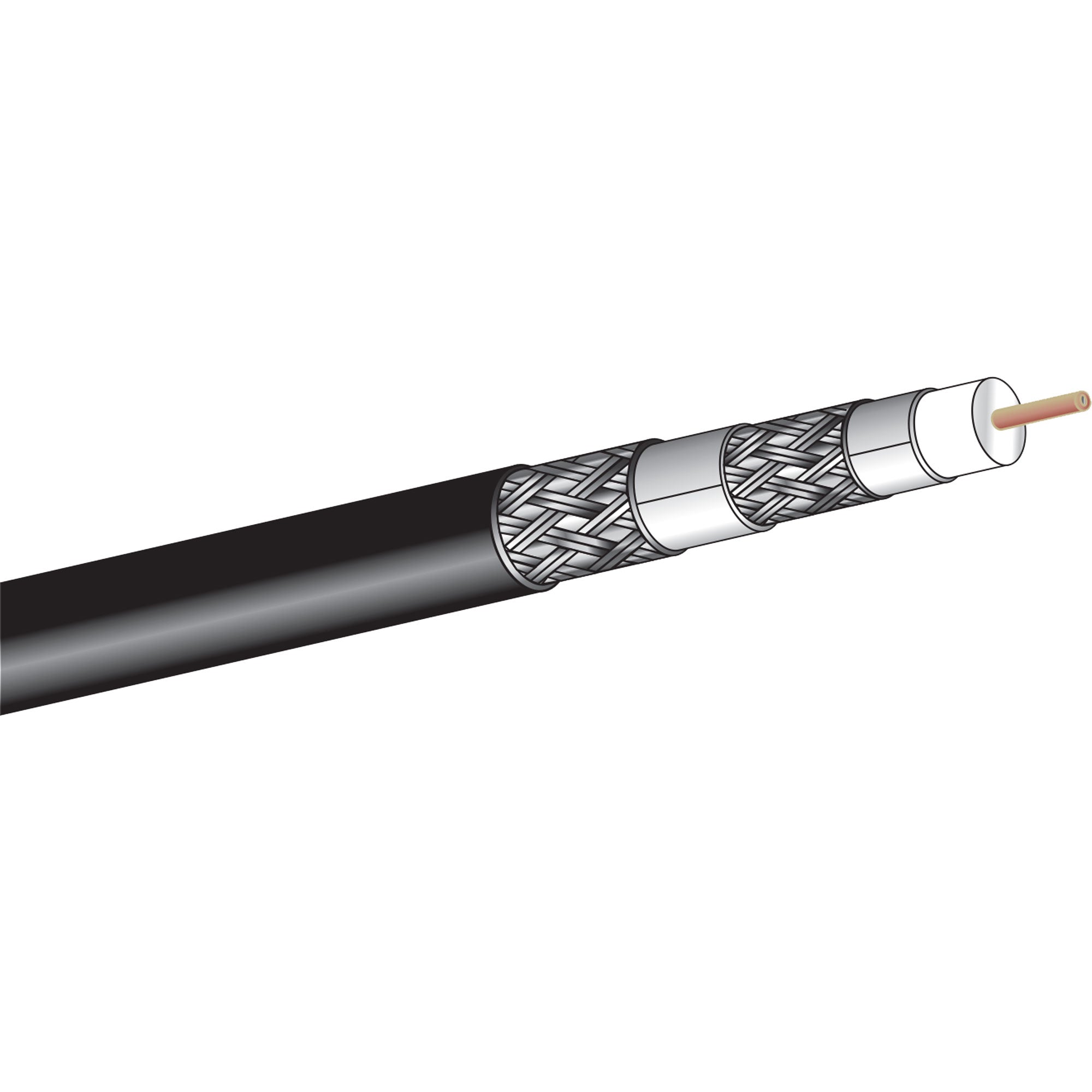

West Penn 6300 Quad Shield coaxial cable features four alternating layers of poly-foil shielding and aluminum braid, the combination of which provides 100% coverage. 6300 is recommended for all CATV/CCTV applications that require an RG-6/U specification cable with a 75 ohm rated impedance. FPE insulation and black PVC jacket.
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 1
- AWG Size: 18
- Conductor Stranding: Solid
- Conductor Type: Copper Covered Steel -CCS
- Nominal DCR: 28 Ohm/1000ft
- INSULATION PARAMETER
- Insulation Type: Foam Polyethylene
- Insulation Thickness: 0.18 in
- SHIELDING PARAMETER
- Shield Type: Overall 100% Aluminum Foil + 60% Aluminum Braid
- Shield Type 2: Overall 100% Aluminum Foil + 40% Aluminum Braid
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 75 Ohm
- Nom. Cap. Between Conductors: 16.2 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Nominal Cable O.D.: 0.295 in
- Plenum: No
- NEC UL Rating: CATV-CM
- RoHS Compliant: Yes
- Pull Tension: 85 lbs
- Bend Radius: 2.94 in
- Cable Weight: 44 lbs
- BELDEN: 1189A
Details
- Manufacturer: West Penn
- MPN: 6300BK
- Model Number: 6300BK
- UPC: 612825056980
