PA SKU # MAP ERK2725LRD MFR # ERK-2725LRD UPC # 656747006302
- Lifetime Tech Support
- Best Seller!
- Ask a Question
Order Now! We'll Ship It Fast! This item is currently out of stock. Most out of stock orders ship within just a few days (excluding weekends and holidays). We'll keep you up to date the whole way.
- Product Highlights
- Fully Welded Construction
- Sides with Top & Bottom Venting
- Convenient Lacing Points
- Slotted Rail Brackets
- Adjustable 10-32 Rackrail
- Rackrail Has Numbered Spaces
Rack Units 18U, 20" Deep, No Rear Door 21U, 20" Deep, No Rear Door 18U, 25" Deep, No Rear Door 18U, 20" Deep 27U, 20" Deep, No Rear Door 21U, 25" Deep, No Rear Door 21U, 20" Deep 35U, 20" Deep, No Rear Door 18U, 28" Deep, No Rear Door 18U, 25" Deep 27U, 25" Deep, No Rear Door 27U, 20" Deep 21U, 28" Deep, No Rear Door 21U, 25" Deep 18U, 28" Deep 27U, 28" Deep, No Rear Door 35U, 25" Deep, No Rear Door 40U, 20" Deep, No Rear Door 27U, 25" Deep 35U, 20" Deep 21U, 28" Deep 35U, 28" Deep, No Rear Door 40U, 25" Deep, No Rear Door 44U, 20" Deep, No Rear Door 27U, 28" Deep 35U, 25" Deep 40U, 28" Deep, No Rear Door 40U, 20" Deep 44U, 25" Deep, No Rear Door 40U, 25" Deep 44U, 20" Deep 35U, 28" Deep 44U, 28" Deep, No Rear Door 40U, 28" Deep 44U, 25" Deep 44U, 28" Deep 21U, 25" Deep, Configured 35U, 25" Deep, AV Configured 40U, 25" Deep, AV Configured 35U, 25" Deep, Configured 44U, 25" Deep, AV Configured
This Middle Atlantic ERK 19" Stand-Alone Enclosure ERK-2725LRD is a fully welded steel rack with 27U capacity designed to hold 19" wide equipment. Its steel frame and 1/8" thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 650 lb. of essential equipment when used in conjunction with ERK-Z4 brackets.
27 Space (47-1/2"), 25" Deep Stand Alone Rack without Rear Door, Black Finish

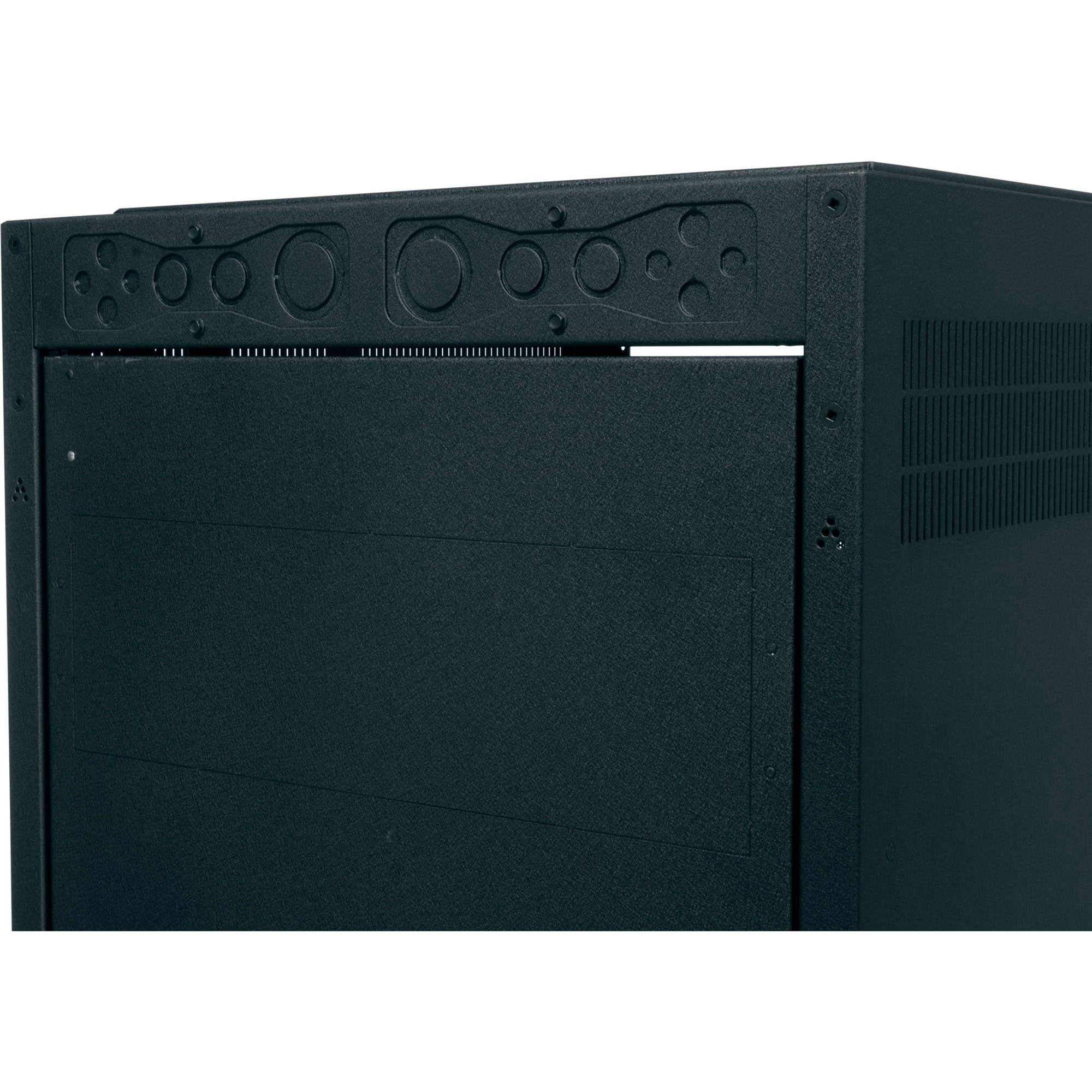

This rack comes standard with (1) pair of 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The top plate additionally includes a UHF/VHF knockout. A large cable entry point is included in the bottom panel with grounding/bonding studs in the base. This model also features a solid top with fan knockouts.
This enclosure system is gang-able, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as optional rear rackrails and a vented door. This model is UL Listed in the United States and Canada.
- Solid Construction
All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
- Seismic Certified
Protects up to 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets.
- No-Clog, Rack-Rail Threads
All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
Limited Lifetime Warranty to Original Purchaser
- General Info
- finish: Textured Black Powder Coat
- UL Standards Tested: UL2416
- Listing Agencies/Third Party Information
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Seismic Rating: Yes
- Usable Depth: 23.47
- Usable Height: 47.375
- Capacity Weight U S: 10000
- Depth U S: 25
- Height U S: 51.375
- Width U S: 22
- Primary Package Weight U S: 107
- Rack Units: 27
- Technical Information
- Rackrail Type: 10-32
- Seismic Load Capacity: 600
- U L Load Capacity: 2500
- Material: Steel
- Mounting: Horizontal
