Key Features
- 32 Canare Exclusive Video Jacks
- Supports 12G/6G/3G/HD/SD-SDI
- Dust Proof Shutter
- Staggered BNC Rear Jacks
- Adjustable Front Panel
- 1RU Lightweight Alloy Body
Description

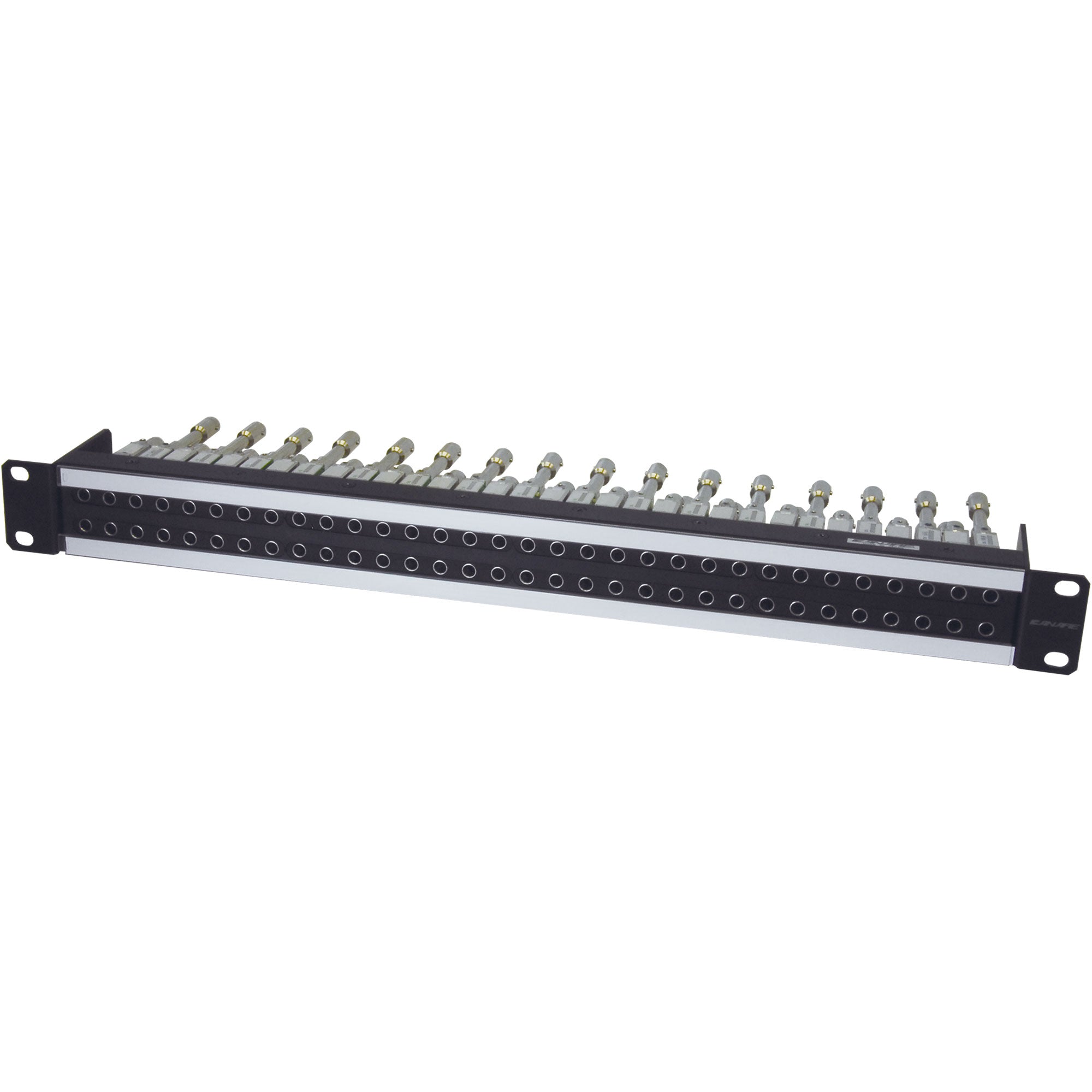

1RU 12G-SDI Mid-Sized Video Patchbay with 32 Straight Through
The next-generation 12G-ready video patchbays with newly developed dual video jacks.
The Canare 32MCK-STS is a 75 Ohm mid size 12G-SDI video patchbay with fully normalled capabilities - no patch cord or looping plug necessary. The panel features a 1RU size with 32 channels across and standard BNC rear connectors. The unit also features a return loss of 4dB or greater @ 12.0GHz and Isolation of 45dB or greater @ 6.0GHz.
Features:
- SMPTE ST 2082-1 compliant
- 32 across, Canare exclusive video jacks
- Return loss: ≥ 4 dB @ 12 GHz, ≥ 7 dB @ 6 GHz, ≥ 10 dB @ 3 GHz
- Isolation: ≥ 45 dB @ 6 GHz
- Supports 12G/6G/3G/HD/SD-SDI
- Dust proof shutter
- Staggered BNC rear jacks
- Adjustable front panel: flat (default) or 25 mm recessed
- Included a sheet of channel designator for easy identification
