Key Features
- 10/100 BaseT Ethernet
- IP CCTV, Digital Integration, HDBaseT
- Category 5E Applications
- 24 AWG Solid Conductors
- Unshielded Twisted Pair (UTP)
- Flouropolymer Insulation
- Flexible Jacket
- Sold by the Foot
- Shipped in a Continuous Length
Description

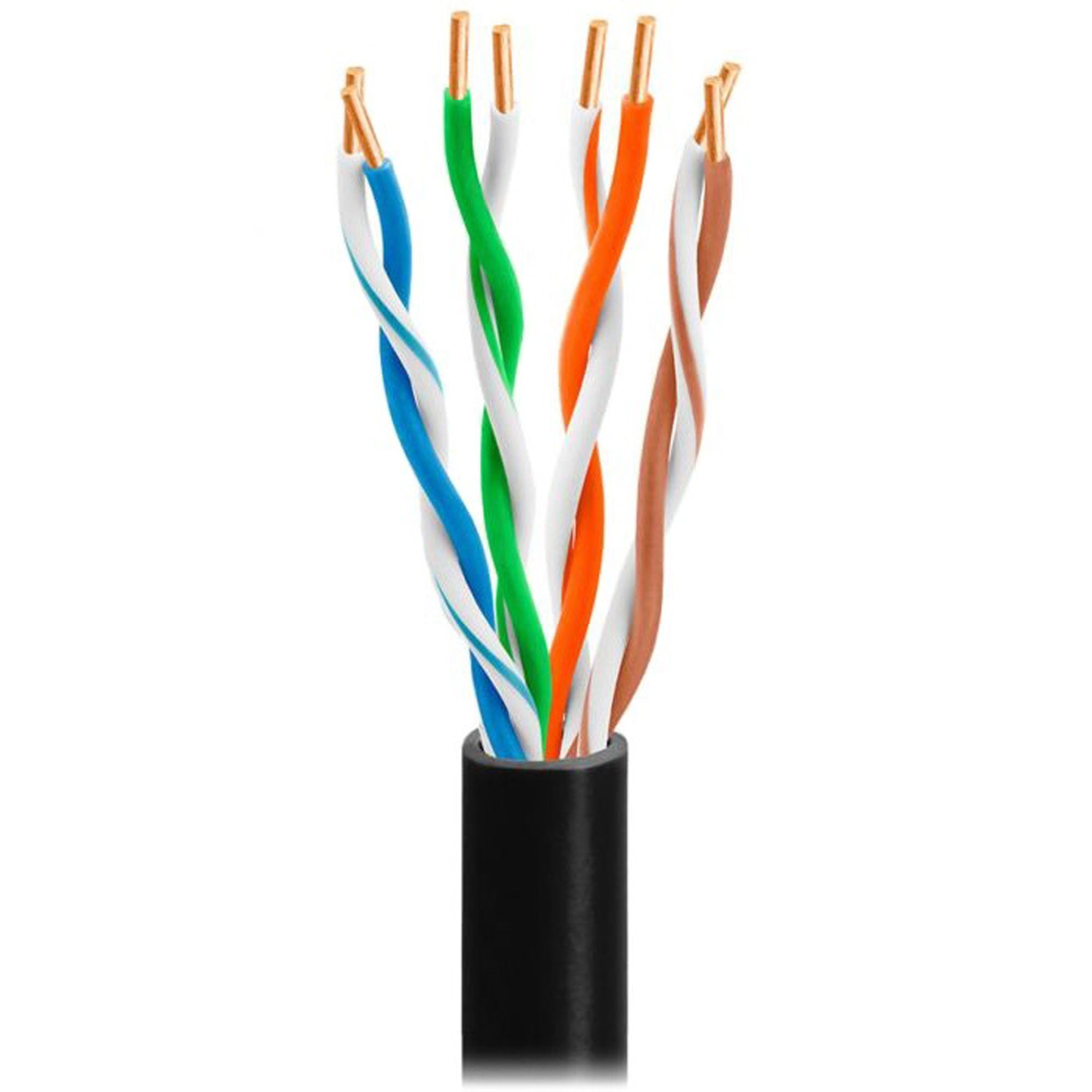

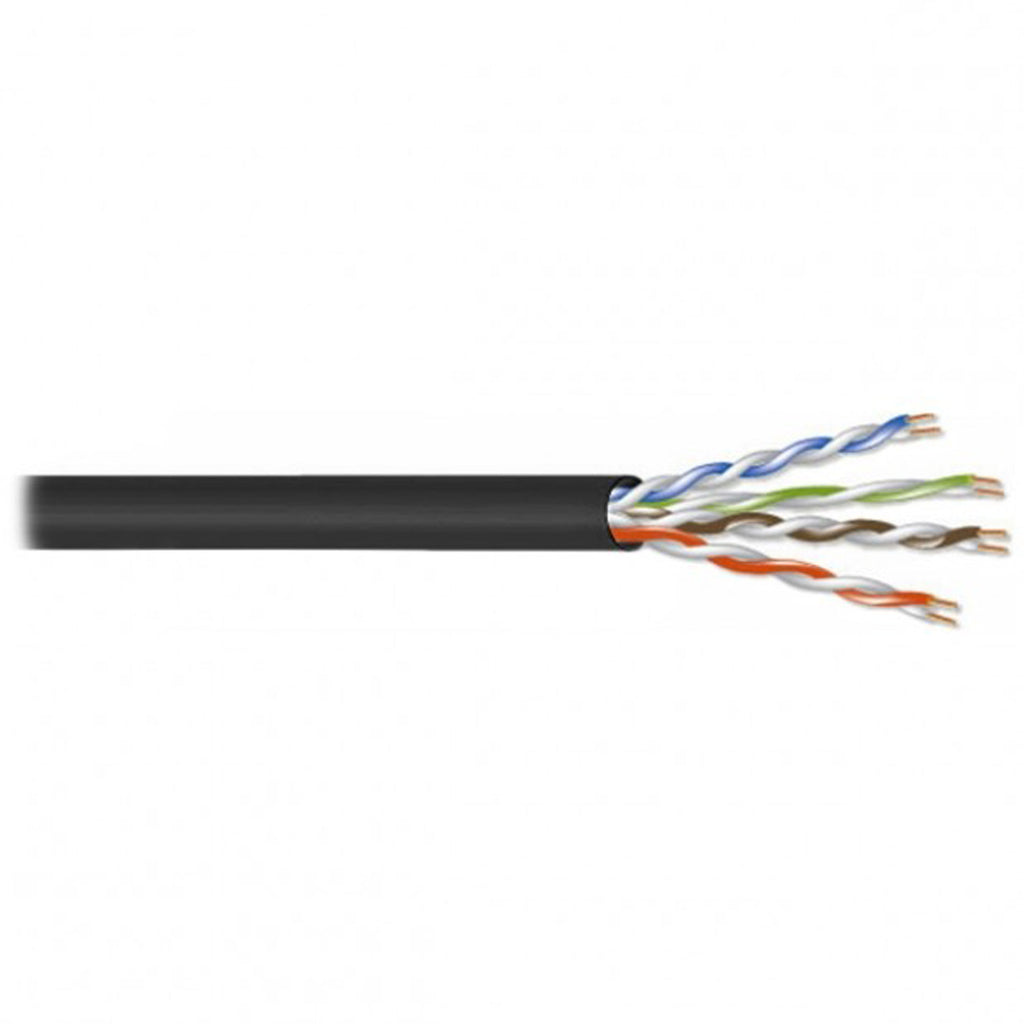

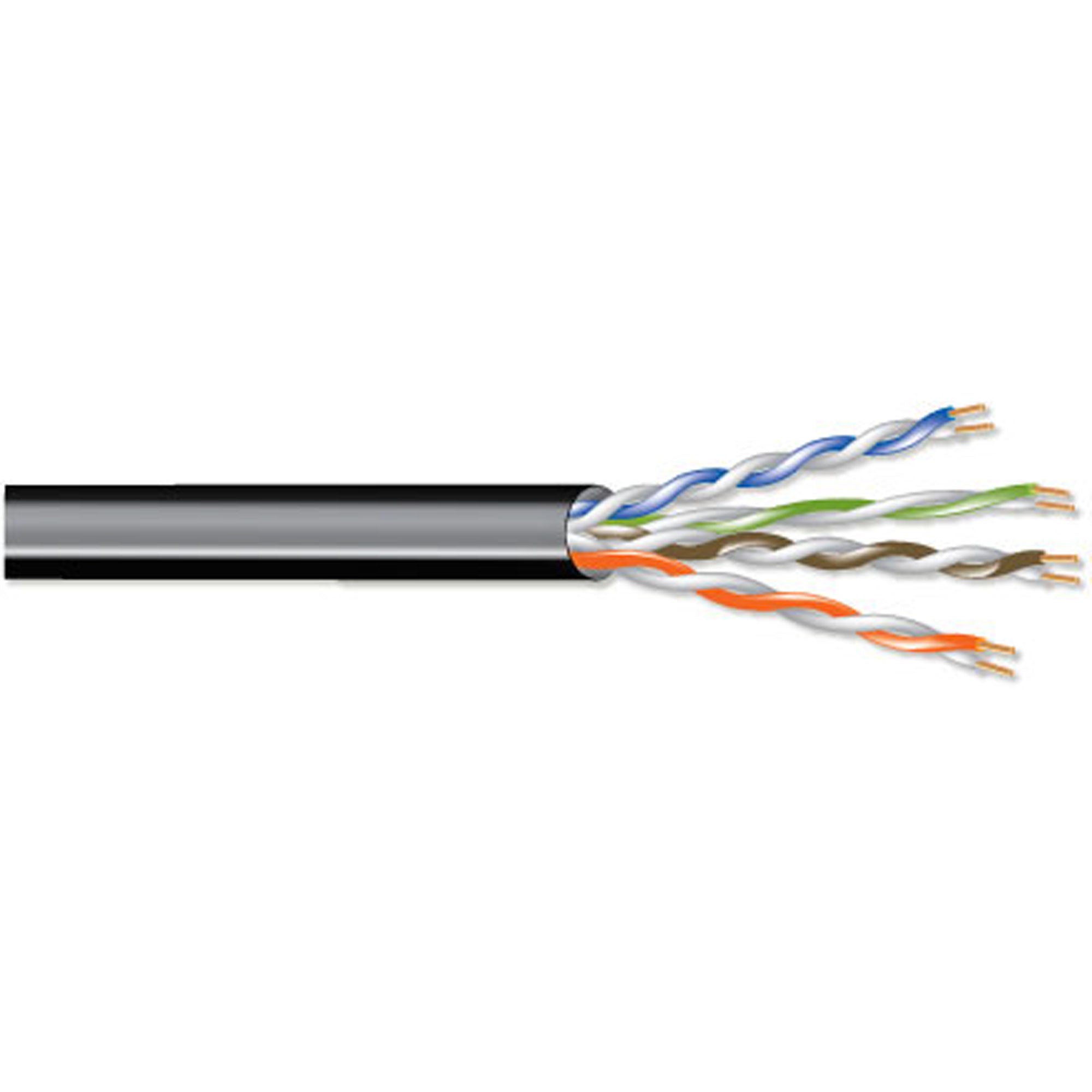

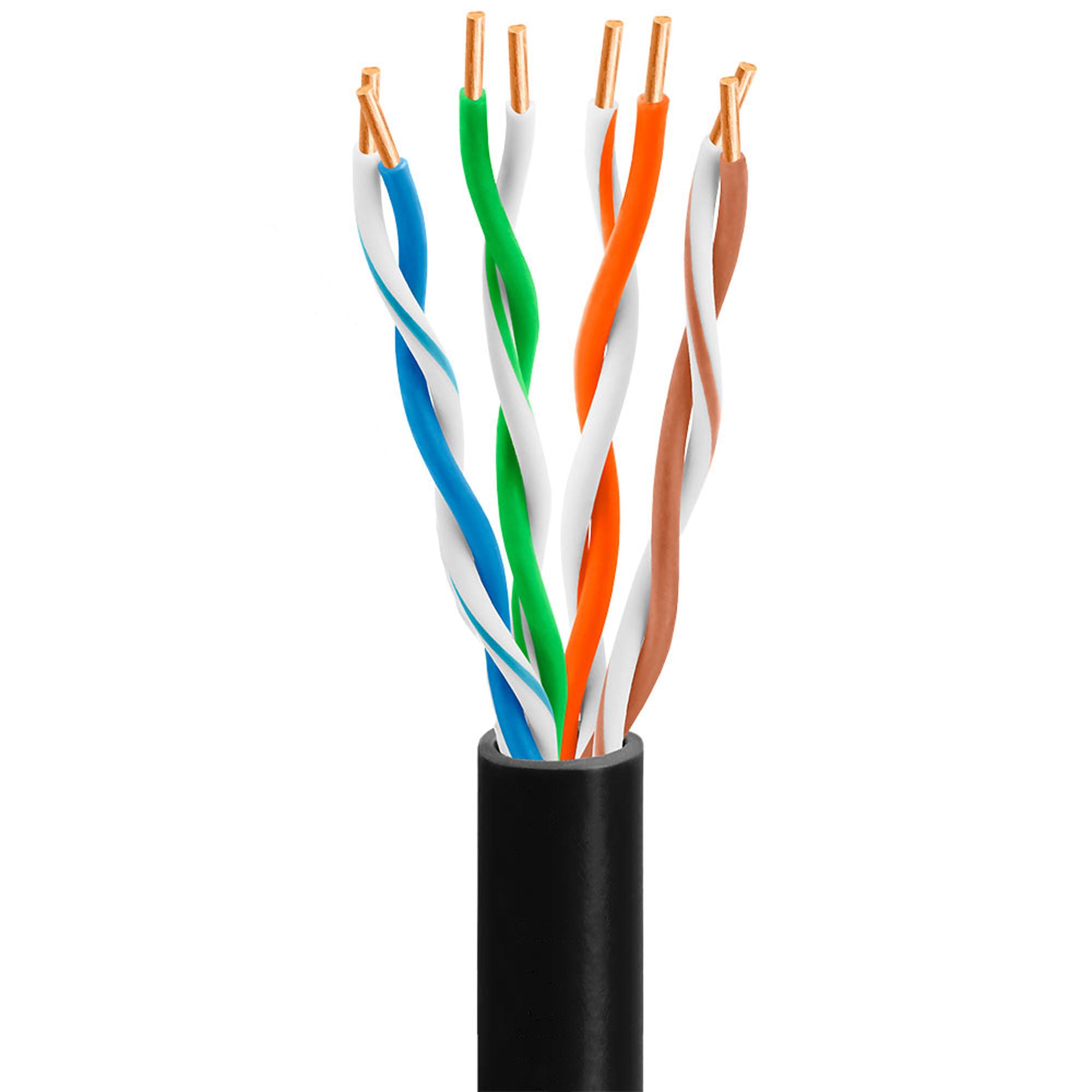

4 Pair 24 AWG CAT5E Ethernet Networking Cable with Polyolefin Insulation - Black - Sold by the Foot
4 Pair 24AWG UTP Category 5E CMR
10/100 BaseT Ethernet, IP CCTV, Digital Integration, HDBaseT
Applications:
Indoor - Category 5E Applications- Ethernet, IP Cameras, Digital Integration
Meets TIA/EIA 568B.2 Category 5e Specifications
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Pairs: 4
- AWG Size: 24
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 26 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Polyolefin
- Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
- SHIELDING PARAMETERS
- Shield Type: Unshielded Twisted Pair (UTP)
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 100 Ohm
- Nominal Capacitance Between Conductors: 14 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 8
- Jacket Type: PVC
- Nominal Cable O.D.: 0.191 in
- Plenum: No
- NEC UL Rating: CMR
- RoHS Compliant: Yes
- ANSI/TIA Category: Category 5E TIA/EIA 568C.2
- TIA Test: ANSI/TIA-568-C.2
- Pull Tension: 25 lbs
- Bend Radius: 0.955 in
- Cable Weight: 21 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- Nominal Velocity of Propagation (VP): 72 %
- Delay Skew: 25 ns/100m
- UL Flammability: UL1666 Vertical Shaft
- CSA Flammability: FT4
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
