Key Features
- Sold by the Foot
- Shipped in a Continuous Length
- Oxygen-Free Copper (OFC)
- Heavy Duty
- Super Flexibility
- Star Quad Design Reduces EMI Noise
- Low Capacitance & Resistance
Description

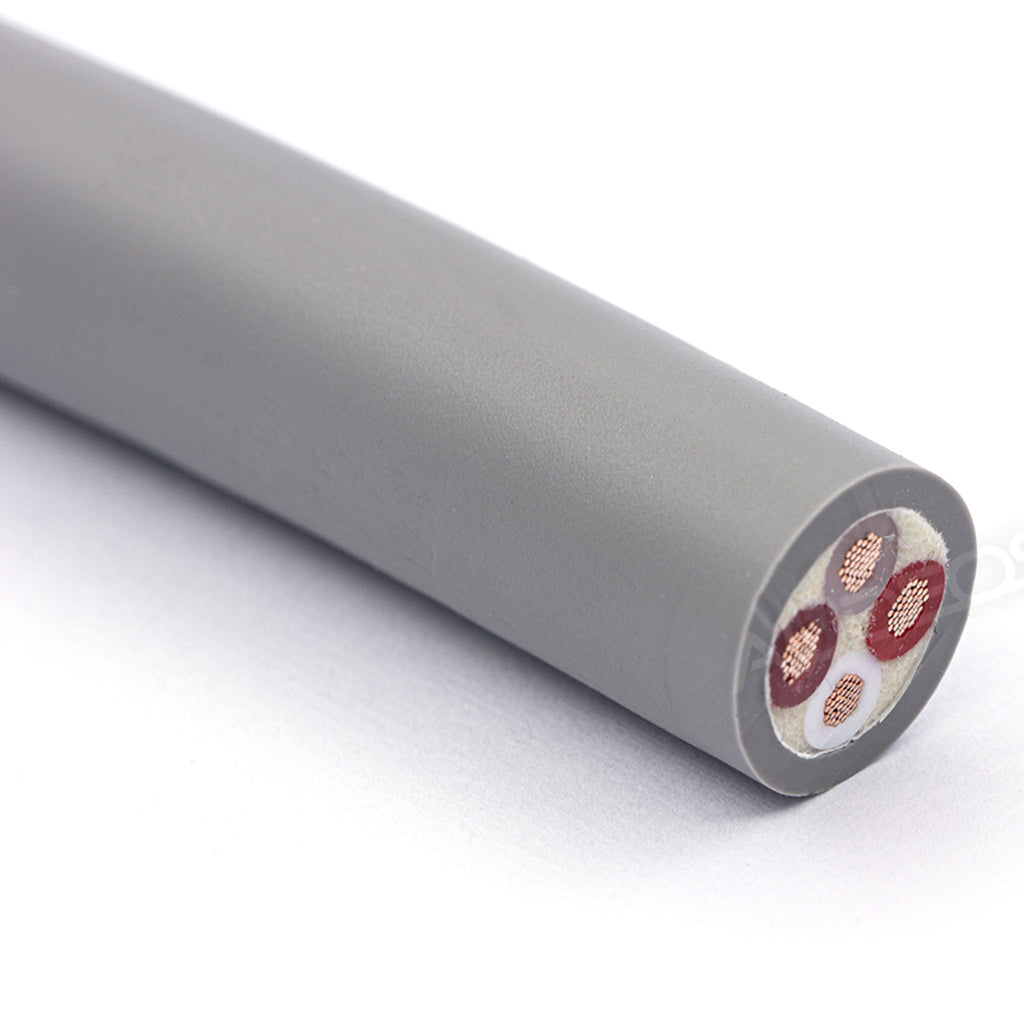

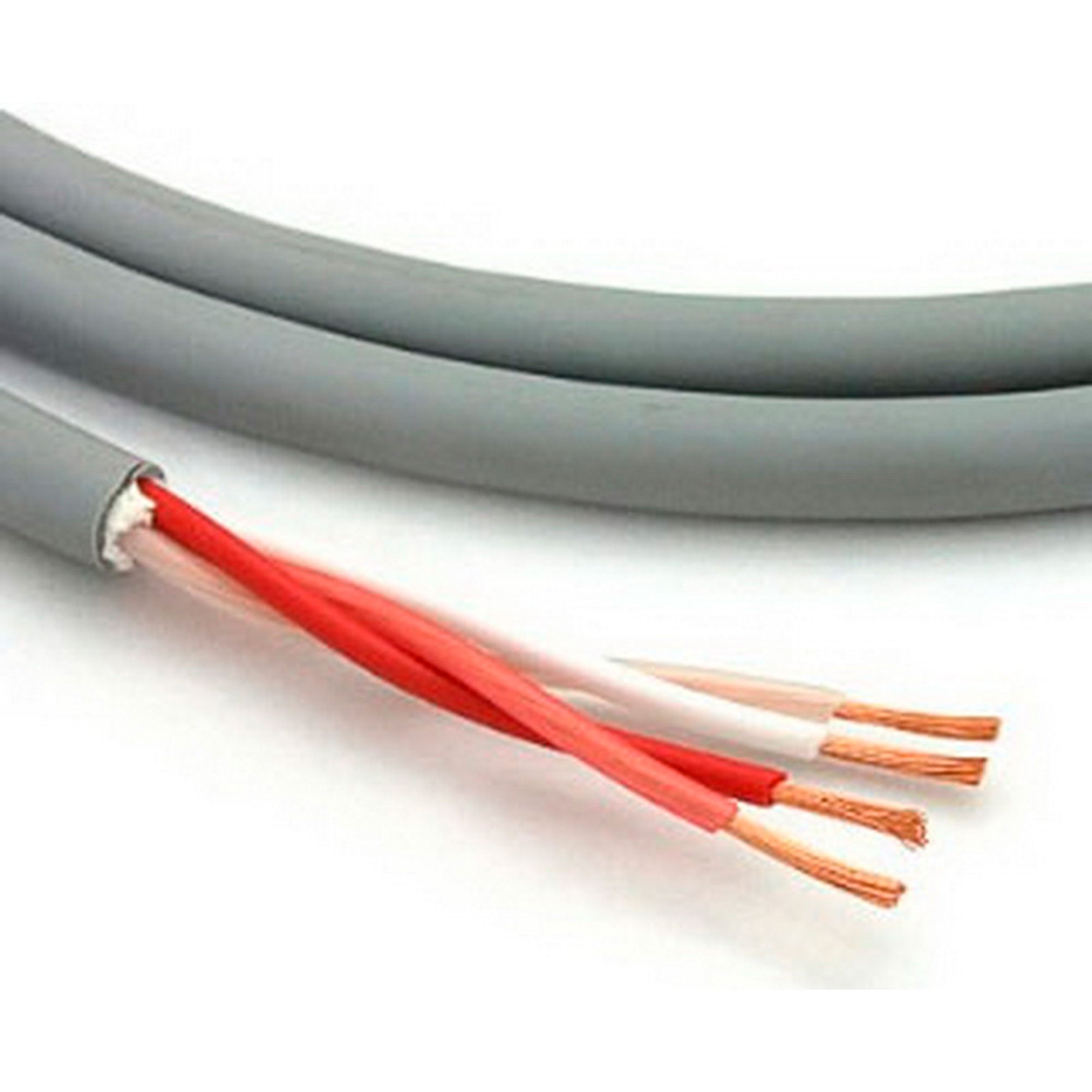

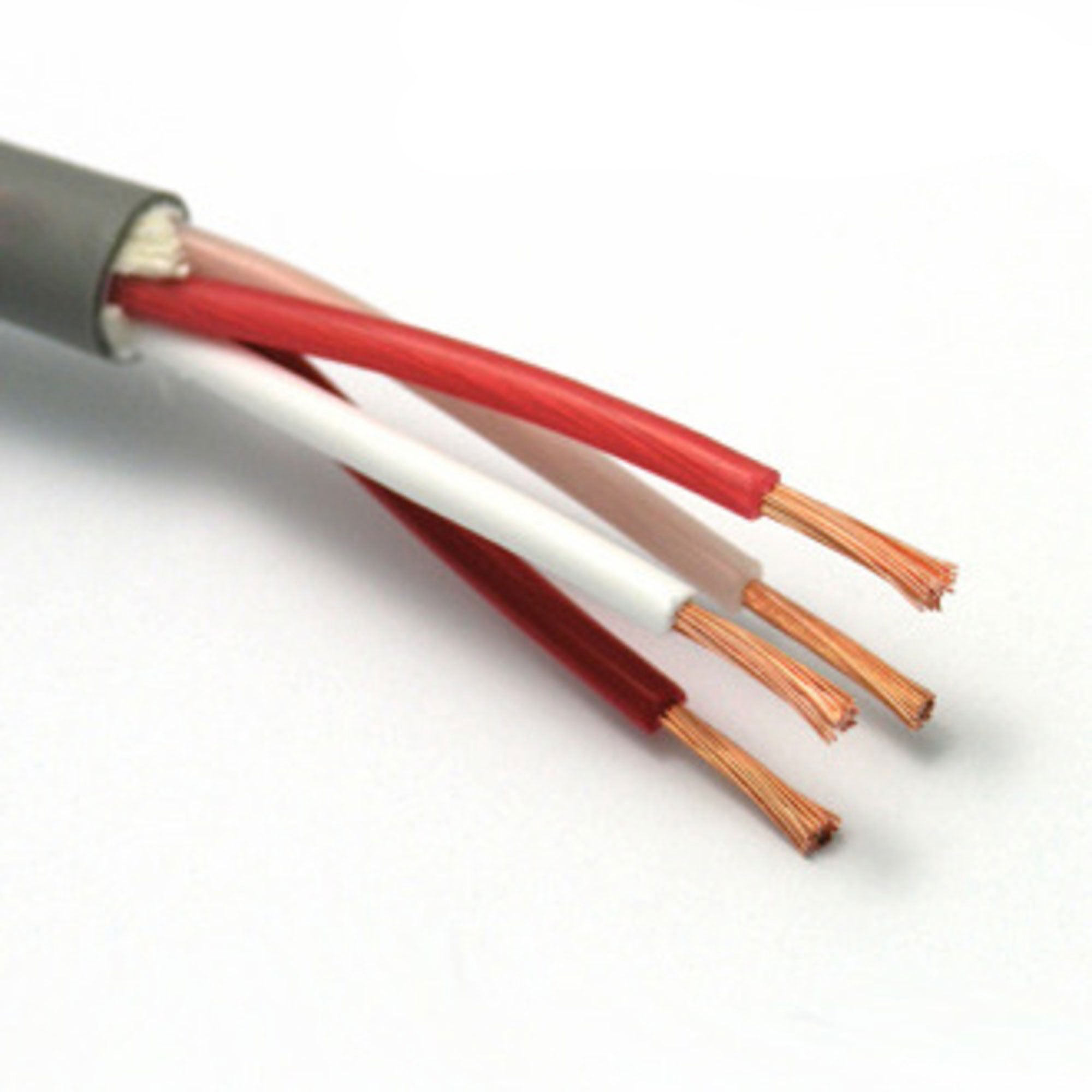

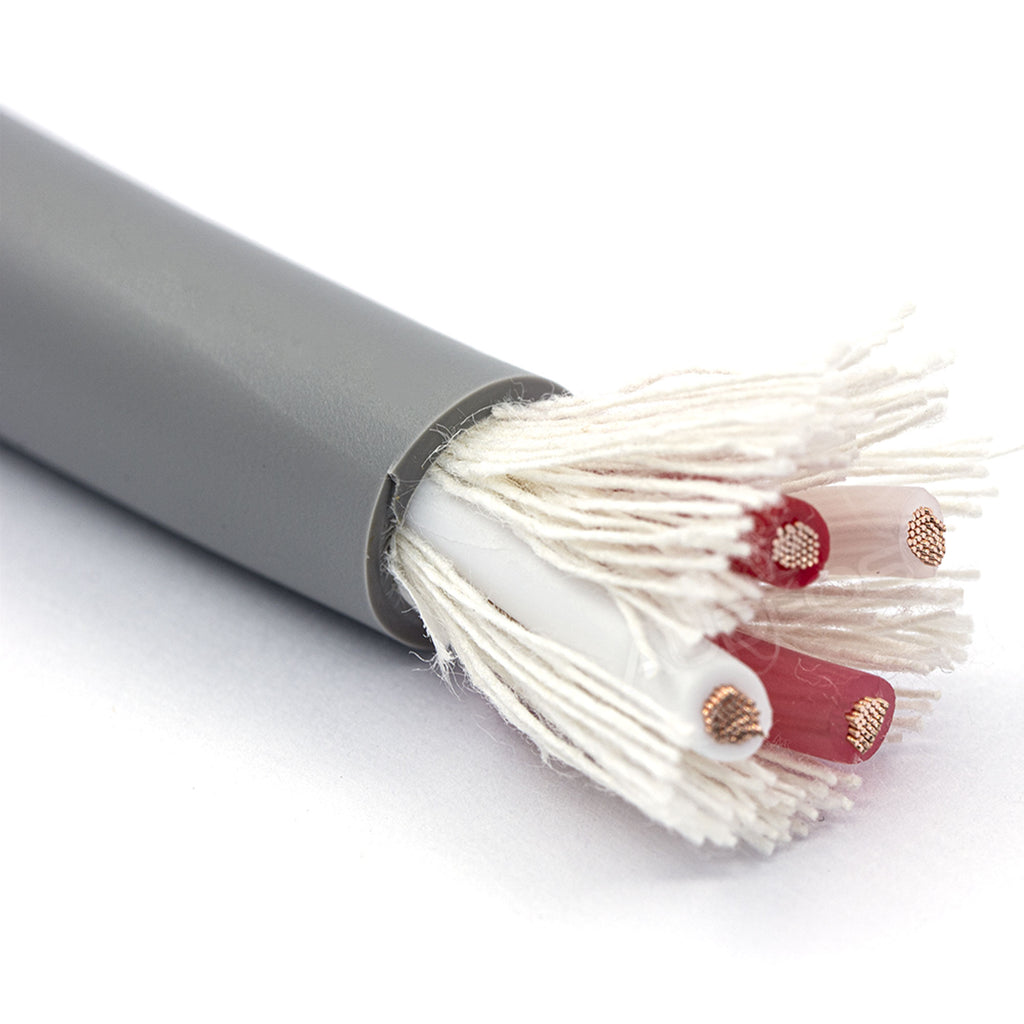

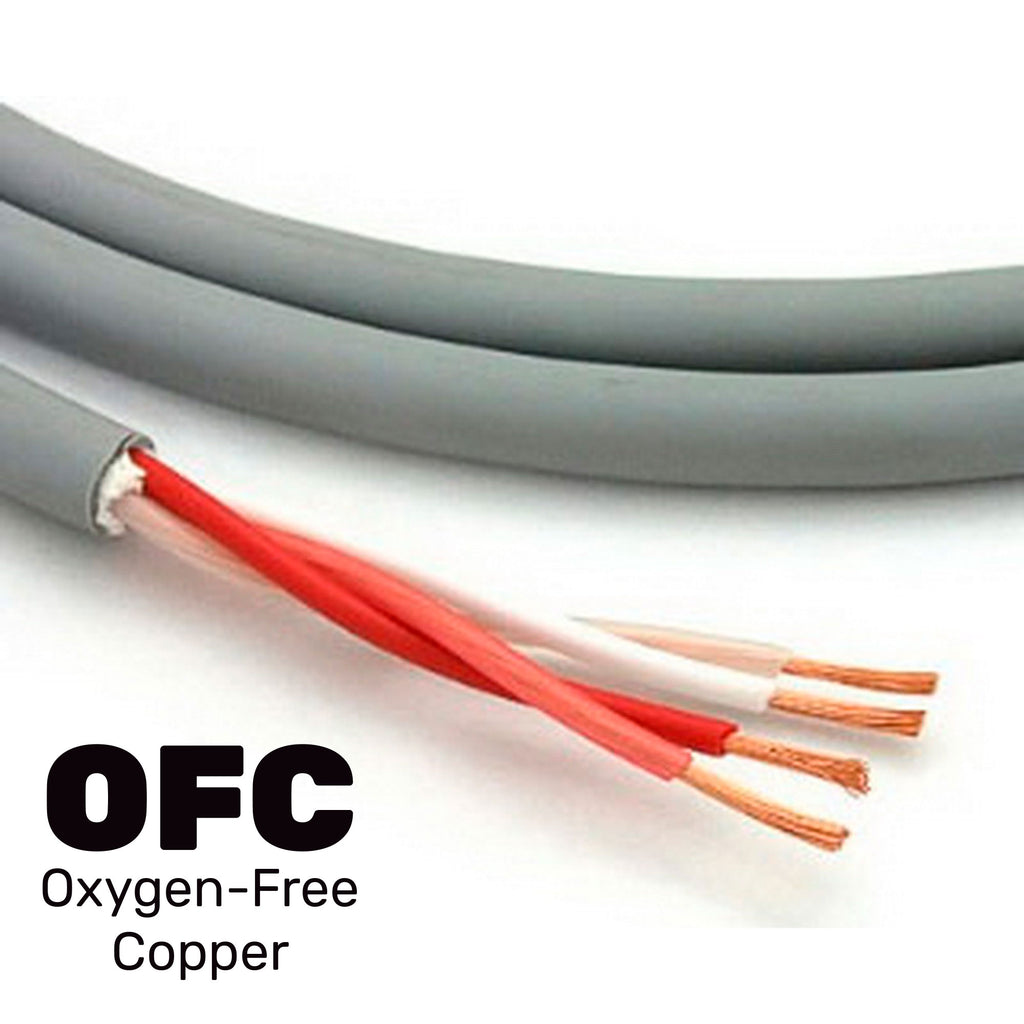

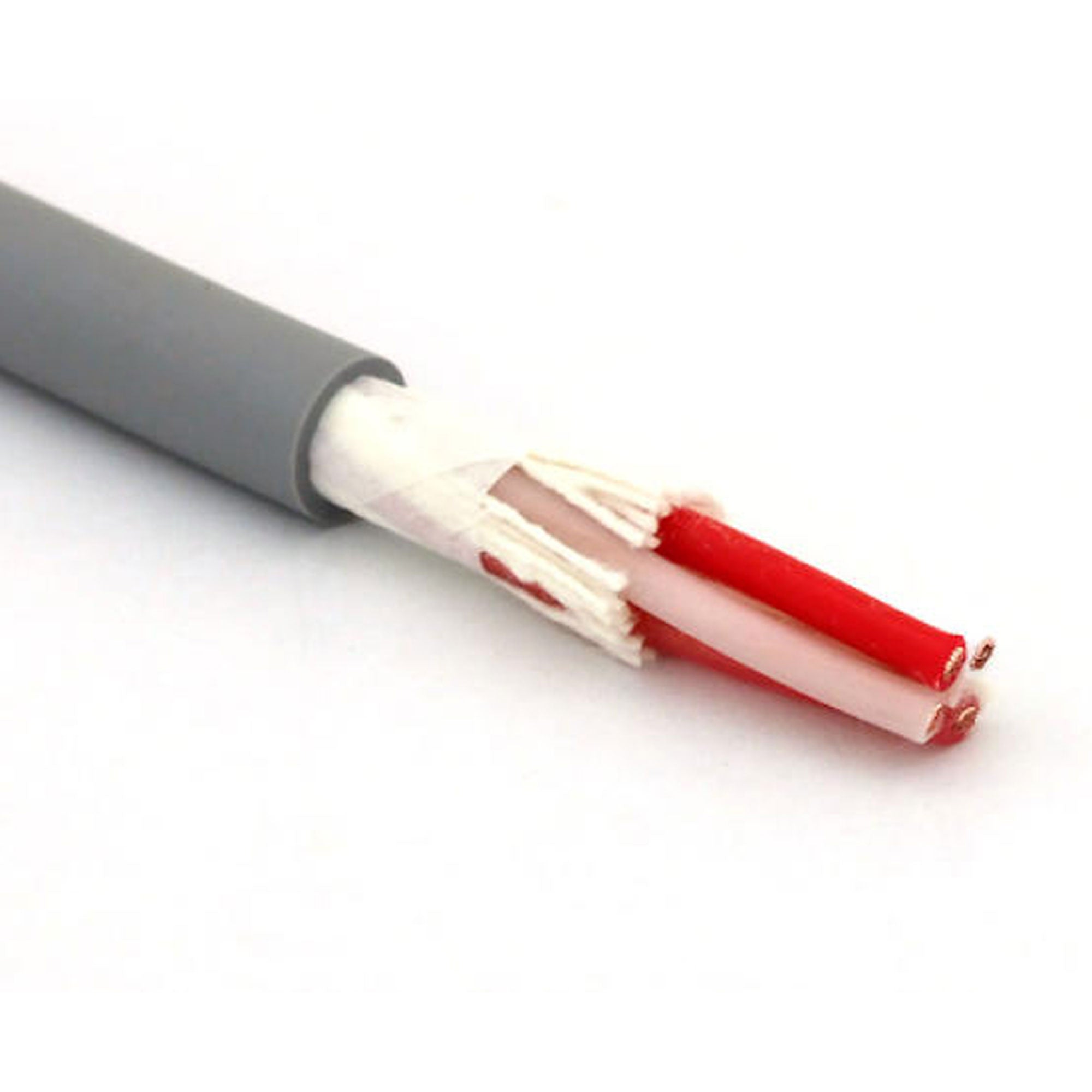

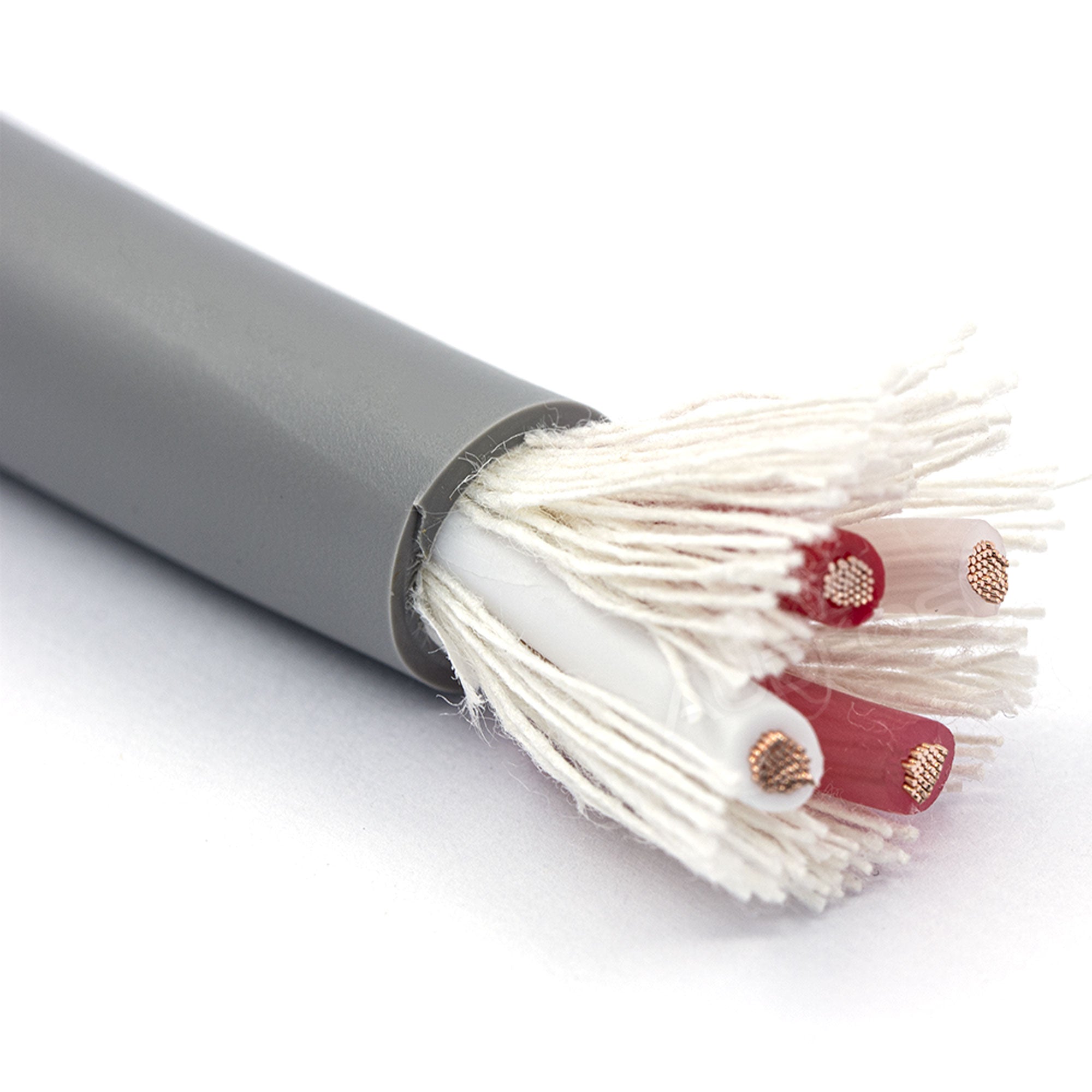

Star Quad 4-Conductor Oxygen-Free Copper (OFC) Speaker Cable 4 x 14 AWG - Grey - Sold by the Foot
Four-conductor configuration minimizes noise and polyethylene insulation reduces induction rate to boost frequency characteristics.
Recommended for long runs and low end Power Amplifier sub-woofer systems. Heavy duty 4 x 14 AWG conductors.
Four-conductor Configuration Minimizes Noise
Speaker cable must accommodate relatively high signal levels, typically tens to hundreds of watts of RMS power. Electromagnetic interference (EMI) can radiate from these speaker lines directly into adjacent low voltage cables (i.e. microphone, video, lines, etc.). Canare solves this problem by using a 4-conductor "Star Quad" configuration in all of our 4S-series speaker cables. Because every conductor is located the same distance from center, the opposing magnetic fields are cancelled out. Attenuation of magnetic field radiation is superior when compared to a standard 2-conductor speaker wire.
Selecting the Right Speaker Cable
Always try to keep speaker cables as short as possible and select cable models that offer a higher damping factor; 20-50 for music (i.e. connect sound) and 10-20 for speech (i.e. sport stadiums).
The greater the damping factor (DF), the better the ability to control speaker excursion to create sharp, clear quality in the low end frequency range
damping factor = speaker impedance / (power amp. output impedance * cable cond. resist. for total loop)
As the above formula shows, a higher conductor resistance causes a lower damping factor, which prevents even top quality power amps from performing at peak optimum levels.
Key Features and Benefits
- 4-conductor style construction.
- Star Quad design reduces EMI noise.
- Low capacitance and resistance.
- High-performance PVC jacket, resistant to bending and twisting.
- The G versions feature oxygen-free copper (OFC, JIS H3510) conductors.
Specifications
- Model Number: 4S11G
- Pair cross-sec (mm2): 4.3
- Nom. O.D: 10.7
- Weight (kg/100m): 16
- No. of cond.: 4
- AWG: 14
- Cond. Comp Qty/mm: 41/0.26(OFC)
- Twist Pitch (mm): 100
- Cond. D.C.R. (Ω/100m): 0.9
- Nom. Cap* - pF/m: 146
